The more advanced way to create a map of Norway in R
18 February 2026
Click on the links below to jump straight to the file format of your interest.
In a previous post I mentioned that I ocassionally create maps using the GeoJSON format, but that for simple maps that need to be done quickly I’d use the {csmaps} package which contains some neatly packaged maps in an easy to use format. However, I rarely use that method myself anymore. Instead, I’ve moved to using a more robust method. It is also slightly more advanced than the pre-wrangled dataframes from {csmaps}. Since the other post has gotten a fair bit of traffic, I’d take that as a sign that this is an issue people are solving often, so today I’d like to over an alternative way to plot maps of Norway (or any other country or region) using a slightly more advanced way using a format that is commonly available. In this post we’ll go through how to create maps in (ggplot2) using the GeoJSON, shapefile, GeoPackage
The GeoJSON and GeoPackage formats have their own websites: geojson.org and geopackage.org
, and geodatabase format.
We’ll use the regular {tidyverse} to do some wrangling and the plotting. And we’ll use the {sf} package to enable functionality to deal with the geo files. As in the previous post (and several before then) we’ll add a custom typeface to the plots to give them a bit more “flair”, even though aesthetics is not the main goal today. We’ll use the {patchwork} package to make some composite figures combining several plots.
library(tidyverse)
library(sf)
library(patchwork)
sysfonts::font_add_google(name = "Fira Sans", family = "custom")
showtext::showtext_auto()
I’ll focus most of the examples in this post on Norway, but I’ll use some others from other parts of Europe as well. Let’s run through three common file formats: GeoJSON, shapefiles, GeoPackage, and geodatabases See here for a technical comparison between three of them .
GeoJSON
GeoJSON is by far my favourite format for geographic data. See the ISO definition here. It’s main advantage is that it’s an open source format, and it’s essentially just a JSON file which is easily editable manually in any IDE. It is also the easiest to create from scratch using websites like geojson.io where one can draw spatial features on a map and the GeoJSON is populated simultaneously. Users can also add aditional features as part of each spatial element (e.g. names, dates, literally anything that can be stored in plain text format) which makes it a very simple, lightweight, and flexible method of storing spatial data and related features.
GeoJSON files use the suffix .geojson to differentiate them from regular JSON files. These can be loaded into R using {sf}’s st_read() function
This function will come back a lot in this post
. Let’s just dive straight in and create the simplest map we can. The data I used for this first part comes from Analyse ABØ’s GitHub repo
Analyse ABØ is the analysis unit for Akershus, Buskerud, and Østfold
. It contains a number of GeoJSON files for the whole of Norway. If you’re looking for an even more official database, you should check out kartverket.no but pay attention that a number of maps hosted there include maritime borders, so they might not reflect what you’d want them to reflect. Since it’s essentially just a JSON file we can just open the file and see what it looks like:
head -n 25 ./data/Fylker-L.geojson
{
"type": "FeatureCollection",
"features": [
{
"type": "Feature",
"properties": {
"id": "33",
"name": "Buskerud",
"fylkesnummer": "33",
"fylkesnavn": "Buskerud"
},
"geometry": {
"type": "MultiPolygon",
"coordinates": [
[
[
[
7.488255641989379,
60.09892437096184
],
[
7.645997988865938,
60.12685743951537
],
[
You’ll see the JSON starts with a type, which is (as far as I’ve seen) always a "FeatureCollection". The “features” within this collection contain the list of the different spatial areas. For each area there is a properties element that contains the metadata. In this case the fylkename and number. As mentioned, whatever you can save in a regular JSON file cna be stored in the properties element The geometry element contains the spatial feature’s type (e.g. MultiPolygon, Point, LineString, etc.) with the coordinates in whatever coordinate reference system (e.g. from -90° to +90°, meters from a given reference point, etc.).
Let’s load the data into R using the read_sf() function and have a look at what it looks like as a data frame.
df_fylker <- read_sf("./data/Fylker-L.geojson") |>
janitor::clean_names()
df_fylker |> glimpse()
Rows: 15
Columns: 5
$ id <chr> "33", "42", "32", "03", "56", "55", "31", "46", "15", "40…
$ name <chr> "Buskerud", "Agder", "Akershus", "Oslo", "Finnmark", "Tro…
$ fylkesnummer <chr> "33", "42", "32", "03", "56", "55", "31", "46", "15", "40…
$ fylkesnavn <chr> "Buskerud", "Agder", "Akershus", "Oslo", "Finnmark - Finn…
$ geometry <MULTIPOLYGON [°]> MULTIPOLYGON (((7.488256 60..., MULTIPOLYGON…
To create a plot, one needs to use a geom created for spatial data: geom_sf()
I can really recommend reading the documentation for sf objects, there’s a lot of useful stuff there

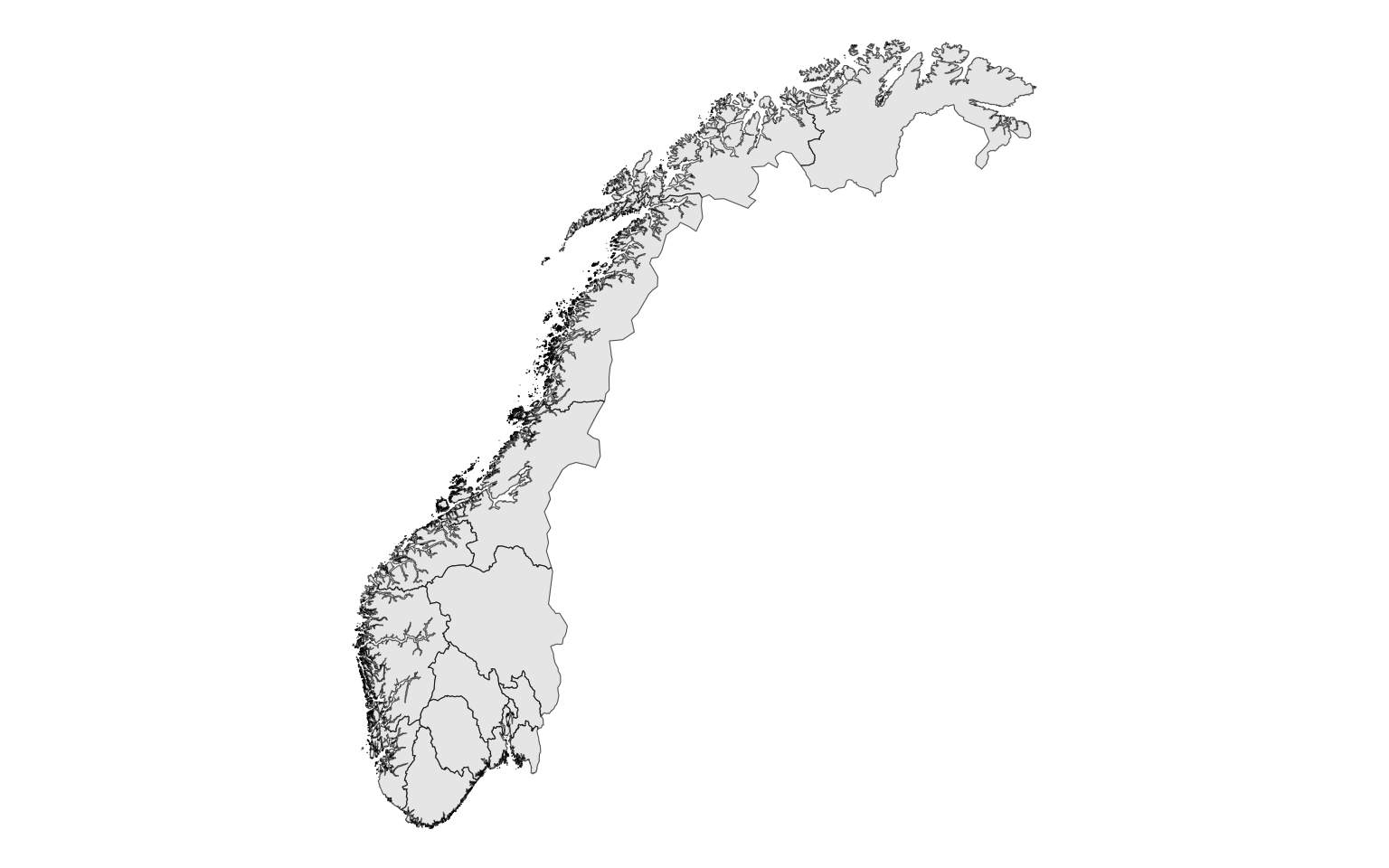

. We don’t even need to supply the aesthetics, since geom_sf() assumes the spatial data is stored in the “geometry” column by default, which it does here too.
df_fylker |>
ggplot() +
geom_sf() +
theme_void()

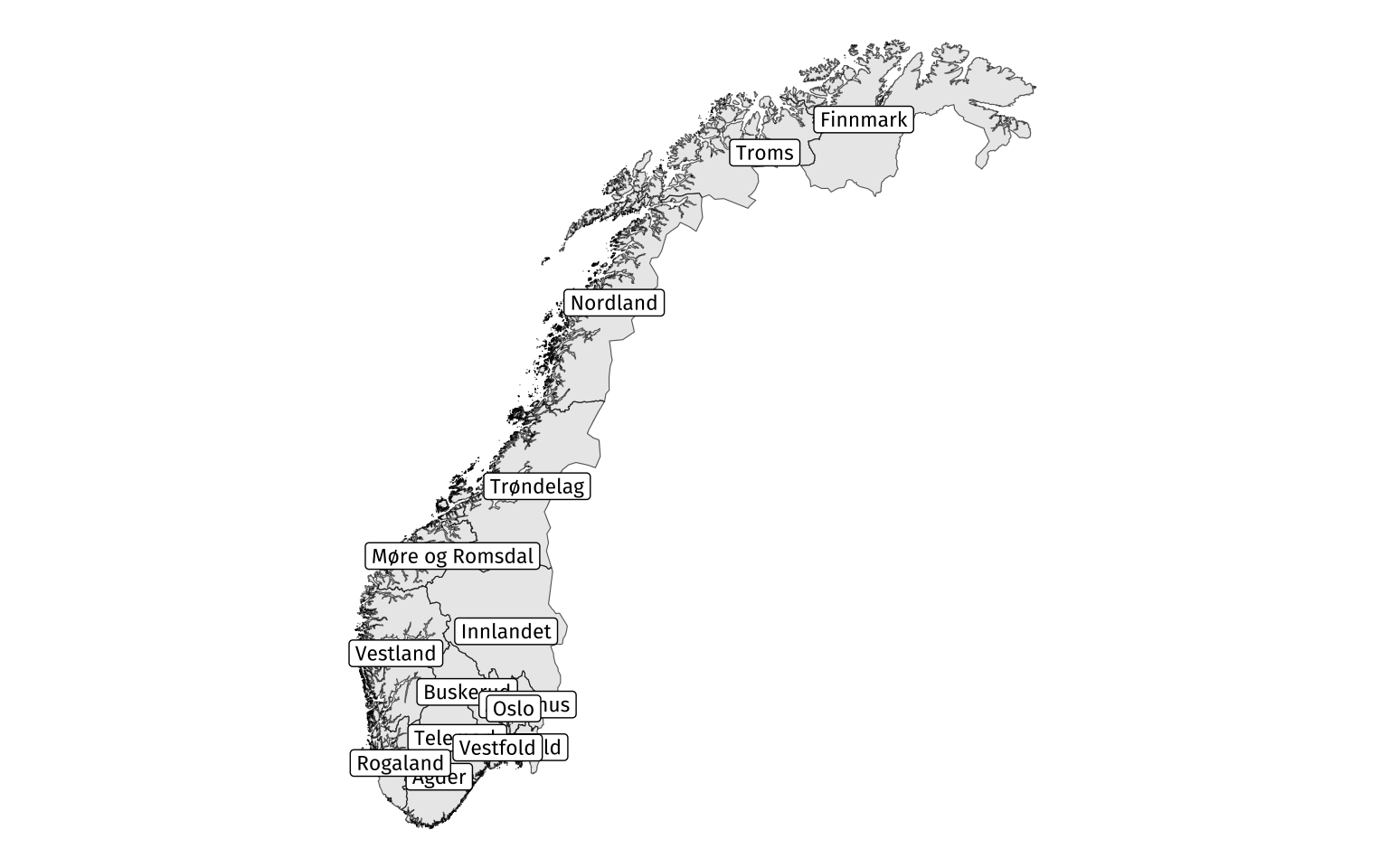

If we wanted to label the fylker in the plot. We could simply use the ggplot-native geom_sf_text() function. And supply the name column.
df_fylker |>
ggplot() +
geom_sf() +
geom_sf_label(
aes(label = name),
size = 3,
fill = "white",
family = "custom"
) +
theme_void(base_family = "custom")
As you can see, this puts the labels directly in the middle of each spatial area (in this case fylke). Under the hood it calculates the centroid for each area and puts the label there. However, because Norway is quite oddly shaped and southern Norway has multiple smaller fylker, the labels overlap and obscure each other. The geom_sf_label() or geom_sf_text() functions work better if you have more uniformly distributed features. As an alternative, we can calculate the centroids manually and use the geom_label_repel() function from {ggrepel} to plot them instead. Calculating the centroids manually is easily done with {sf}’s st_centroid(), but in the dataset we used I got an error that some of the polygons overlap and one trick to address this is to transform the dataset from two different coordinate reference systems (CRS) using the st_transform() function
We’ll come back to CRS transformations further below
. Then we can extract the longitude (east-west position, Greenwich is 0° longitude) and latitude (north-south position) that will serve as the x- and y-position for geom_label_repel() in the plot. We can add some additional settings to the function to control the look of the labels.
df_fylker_centroids <- df_fylker |>
st_transform(crs = 3857) |>
st_centroid() |>
st_transform(crs = 4326) %>%
mutate(
lon = st_coordinates(.)[, 1],
lat = st_coordinates(.)[, 2]
)

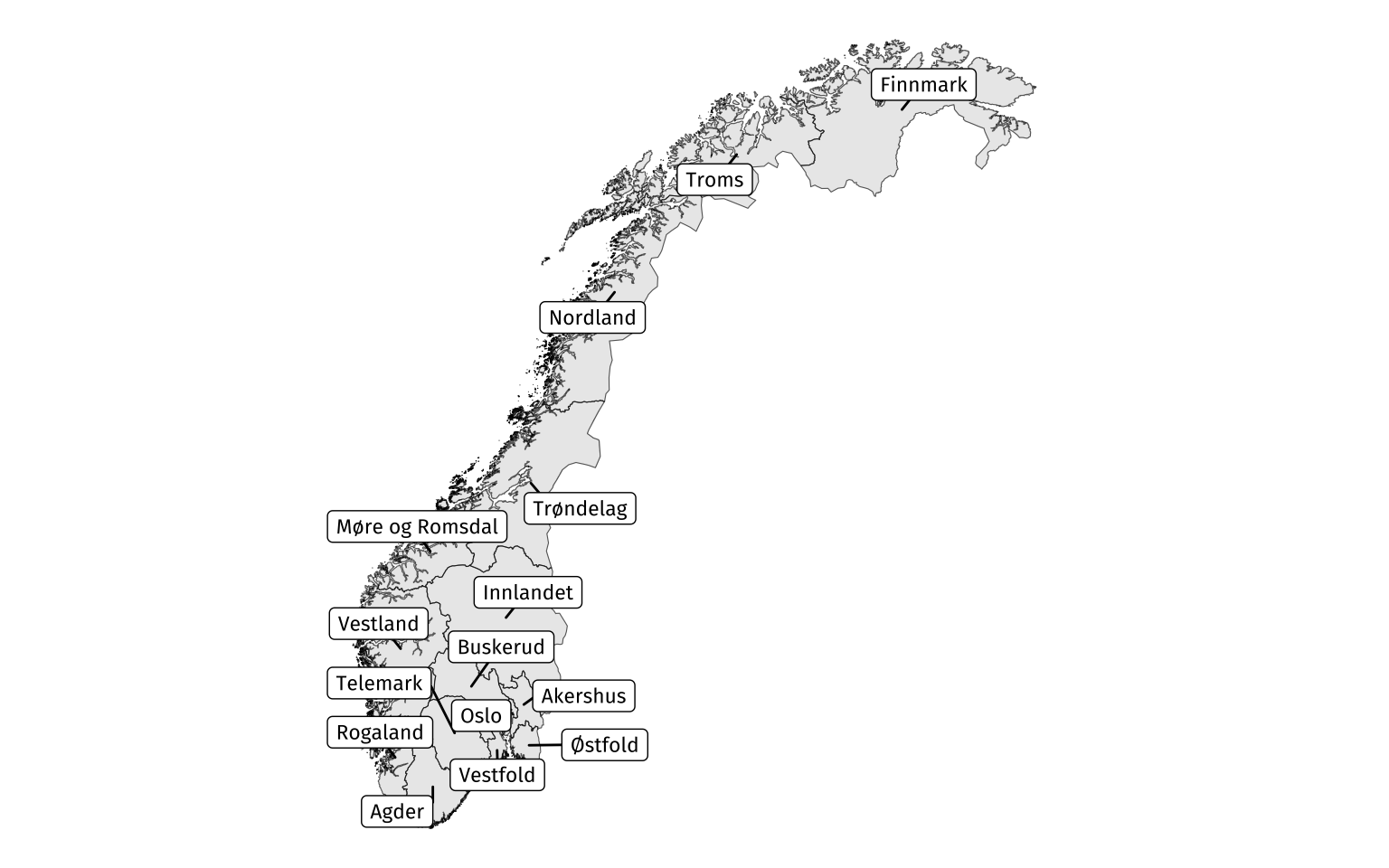

df_fylker |>
ggplot() +
geom_sf() +
ggrepel::geom_label_repel(
data = df_fylker_centroids,
mapping = aes(x = lon, y = lat, label = name),
size = 3,
family = "custom",
min.segment.length = 0,
max.overlaps = 15,
seed = 42
) +
theme_void(base_family = "custom")
Now the labels are all readable. Oslo is a tiny fylke, so the label almost entirely covers the area on the map, but if we wanted we could finetune the label positioning some more. But aesthetics is not the main goal for today.

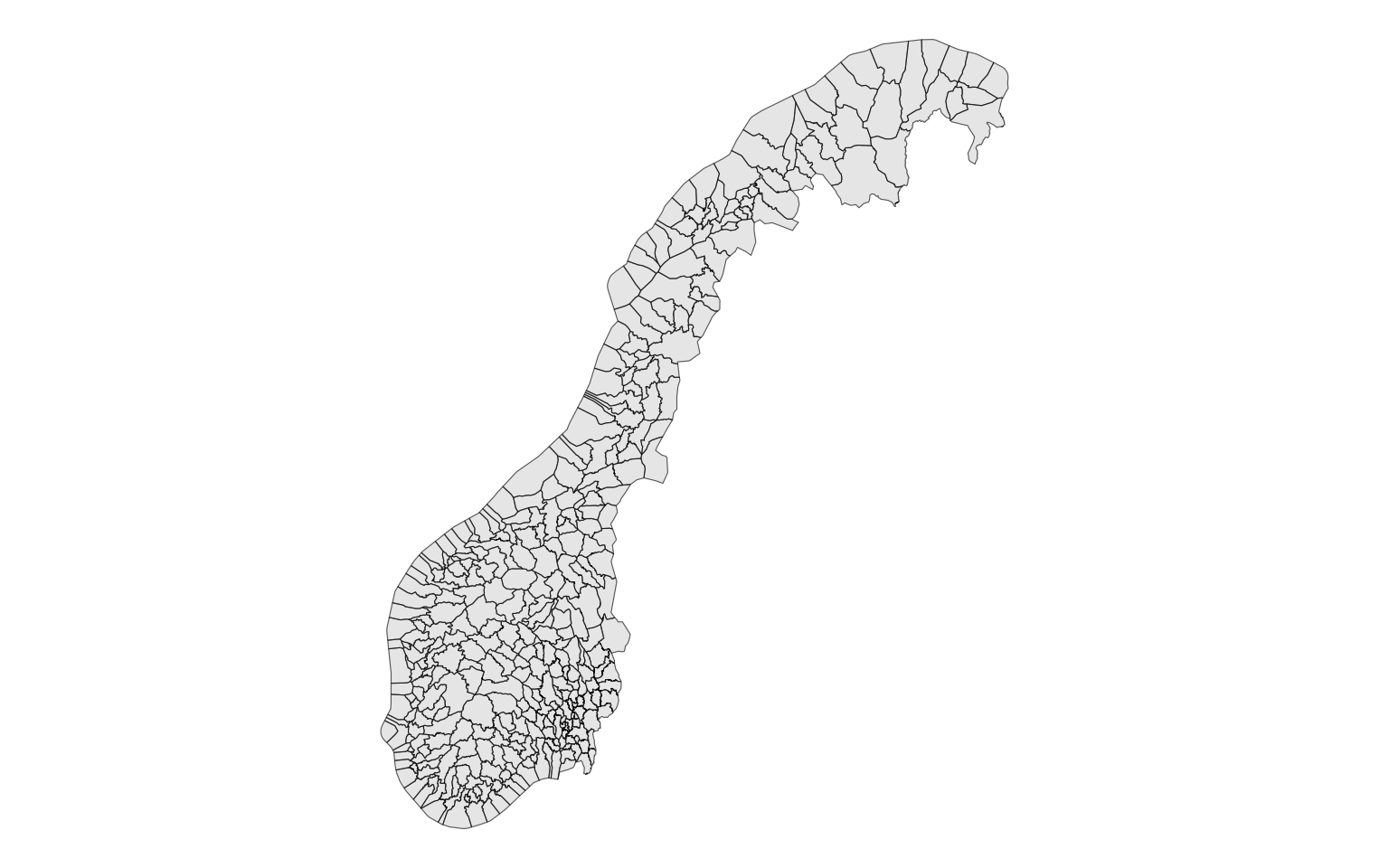

Click here for an example of a Kartverket map with maritime borders
read_sf("./data/kartverket_map_kommuner.geojson") |>
ggplot() +
geom_sf() +
theme_void()

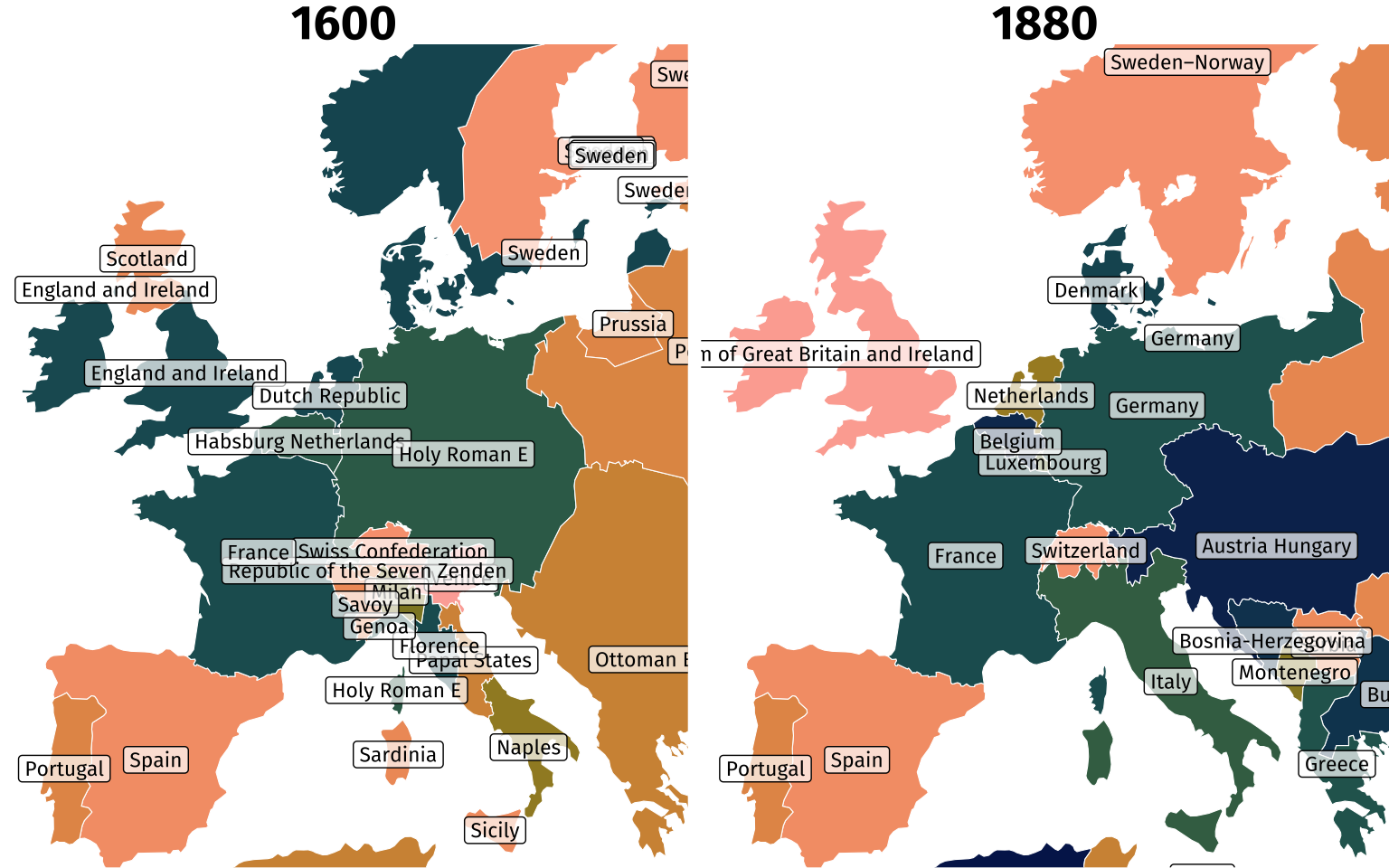

Let’s do another one. Let’s load some GeoJSON files and create a plot. I found a GitHub repository from a writer, cartographer, and data scientist (André Ourednik) that created a bunch of maps from different time periods stored in GeoJSON files. We can read two of these files in and compare what the borders looked like at different times. Since the original maps are world maps, we want to restrict what we show in the plot so we want to restrict the boundaries of what is shown. For this we can use the coord_sf() function and specify the longitude and latitude of the boundaries.
df_world_1600 <- read_sf("./data/world_1600.geojson") |>
janitor::clean_names() |>
mutate(year = 1600)
df_world_1880 <- read_sf("./data/world_1880.geojson") |>
janitor::clean_names() |>
mutate(year = 1880)
bind_rows(
df_world_1600,
df_world_1880
) |>
ggplot(aes(fill = name)) +
geom_sf(color = "white") +
geom_sf_label(
aes(label = abbrevn),
size = 3,
fill = "white",
alpha = 0.7,
family = "custom"
) +
scico::scale_fill_scico_d(guide = "none") +
facet_wrap(~year) +
coord_sf(xlim = c(-10, 22.5), ylim = c(37.5, 62.5)) +
theme_void(base_family = "custom") +
theme(
strip.text = element_text(size = 20, face = "bold")
)
You’ll see that some area borders are cut off, but also that some labels are cut off. This is a downside here and should be fixed in a production-ready plot. You’ll also notice that some labels are duplicated (e.g. Sweden multiple times in the “1600” subplot, and “Germany” in the 1880 subplot). I suspect this is because the islands outside of for example mainland Sweden are their own polygon and get their own label. The same happens to “England and Ireland” in the 1600 plot. This can be fixed manually by cleaning up the GeoJSON and turning everything in a spatial area into a single feature, but that is outside the scope of this post I think.
Since we now constrained a plot using the coord_sf() function, we can also immediately look at another way to only plot the area of interest, and that is using a bounding box. In R these can be defined using {sf}’s st_bbox() function where you specify the corners of the rectangle you want to contrain the map to, and the coordinate reference system (CRS) in the crs argument so the function knows how to interpret the coordinates provided. So let’s use this function to (controversially, I’ll admit) get a more focused map
boundaries_of_interest <- st_bbox(
c(xmin = 5, xmax = 15, ymin = 57.5, ymax = 65),
crs = st_crs(df_fylker)
)
boundaries_of_interest
xmin ymin xmax ymax
5.0 57.5 15.0 65.0
You can see it’s simply a collection of coordinates. Then we can add the bounding box to each of the features in our data frame. This will allow us then to filter the features where any of the coordinates in the geometry are outside the boundaries specified. We thereafter don’t need the bounding box anymore so we can drop it from the data frame.
df_fylker_small <- df_fylker |>
mutate(bbox = map(geometry, st_bbox)) |>
filter(
map_lgl(
bbox,
~ .x["xmin"] >= boundaries_of_interest["xmin"] &
.x["xmax"] <= boundaries_of_interest["xmax"] &
.x["ymin"] >= boundaries_of_interest["ymin"] &
.x["ymax"] <= boundaries_of_interest["ymax"]
)
) |>
select(-bbox)
str_glue("Number of rows before filtering: {nrow(df_fylker)}")
str_glue("Number of rows after filtering: {nrow(df_fylker_small)}")
Number of rows before filtering: 15
Number of rows after filtering: 9
So this operation dropped 6 fylker from the map. If we had used coord_sf() to limit the extent of the map, it would still show the fylker but parts of the map would just be hidden behind the borders of the plot.
df_fylker_centroids <- df_fylker_small |>
st_transform(29101) |>
st_centroid() |>
st_transform("+proj=longlat +ellps=GRS80 +no_defs") %>%
mutate(
lon = st_coordinates(.)[, 1],
lat = st_coordinates(.)[, 2]
)
plot_filtered <- df_fylker_small |>
ggplot(aes(fill = name)) +
geom_sf(color = "white", alpha = 0.8) +
ggrepel::geom_label_repel(
data = df_fylker_centroids,
aes(x = lon, y = lat, label = name),
fill = "white",
alpha = 0.75,
size = 3,
family = "custom",
min.segment.length = 0,
segment.color = "white",
label.size = NA,
seed = 42
) +
scico::scale_fill_scico_d(palette = "batlowK", guide = "none") +
theme_void(base_family = "custom")
plot_limited <- df_fylker |>
ggplot(aes(fill = name)) +
geom_sf(color = "white", alpha = 0.8) +
ggrepel::geom_label_repel(
data = df_fylker_centroids,
aes(x = lon, y = lat, label = name),
fill = "white",
alpha = 0.75,
size = 3,
family = "custom",
min.segment.length = 0,
segment.color = "white",
label.size = NA,
seed = 42
) +
scico::scale_fill_scico_d(palette = "batlowK", guide = "none") +
coord_sf(xlim = c(5, 15), ylim = c(57.5, 65)) +
theme_void(base_family = "custom")

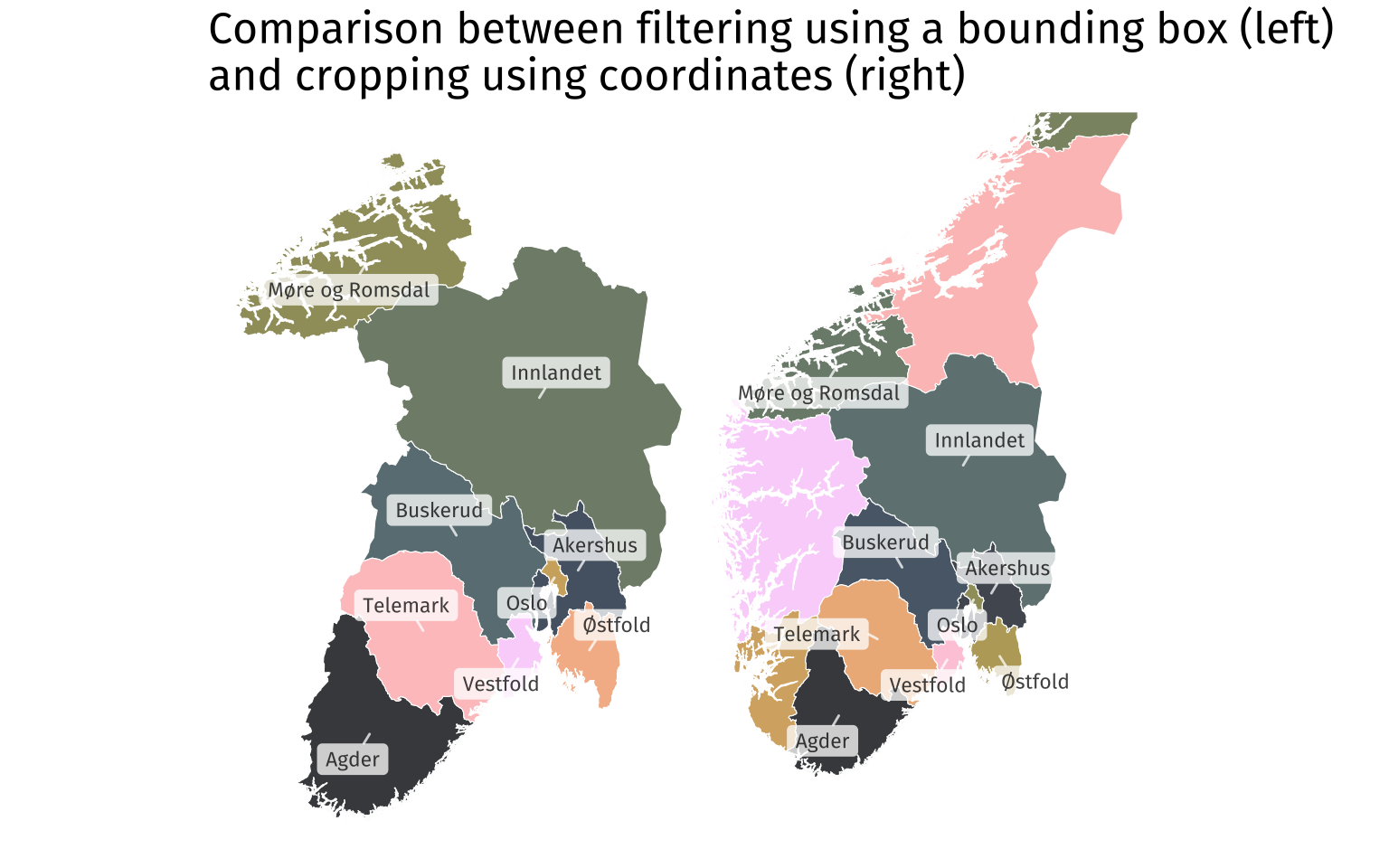

plot_filtered +
plot_limited +
plot_annotation(
title = "Comparison between filtering using a bounding box (left)\nand cropping using coordinates (right)"
) &
theme(
plot.title = element_text(family = "custom", size = 18),
)
You’ll notice the difference between the two immediately. Which one is more useful to you is entirely dependent on your use case. For example, the left one can make sense if you want to reduce sensory overload and/or if including additional spatial context will be distracting. The right one would be nice if you want to include some reference points for your data. This is the version I personally use most. Note also that even though the fylker not included in the left plot are shown on the right, they are not labeled since we also filtered the centroids. This was deliberate of course because perhaps we don’t want to label irrelevant data. In this example it might look odd, but it’s been useful in a number of situations.
Shapefile
A shapefile are a binary file format. To have a complete dataset it comes with a .shp file (which contains the actual data), a .shx file which contains the shape indices, a .dbf format which contains the metadata for each spatial feature (actually dBASE files), and a .sbn file which contains the spatial indices. A .prj file is sometimes included (but not required for a complete dataset) to provide some additional information on the projection of the coordinates in the dataset. Shapefiles are a very old format, so much so that individual file sizes are limited to 2GB, however they are still widely used so I’ll quickly cover them here. It’s my least favourite format since they are quite annoying to work with. You essentially have to keep track of them in folders and even though you only point to a single file, the other files need to be present to avoid ending up with a corrupt dataset.
When loading shapefiles, we can just point read_sf() to any of the four required files
I typically just point to the .shp file
. This works the same as with GeoJSON (or any other format here). For the first example here we’ll load a map of countries created by Eurostat (the statistics agency for the EU) and use that as a reference point (as discussed above). Specifically we’ll download the data with the highest granularity (3m) from 2024 with the EPSG:4326 (or “WGS 84”) CRS. To plot some actually interesting data we can download data on oil fields and their license holders from the Norwegian Sokkeldirektoratet SODIR. We’ll clean up the dataset a bit since there are a lot of license holders among various companies with (roughly) the same name that can have various similar names to represent the same entity. To clean it up we’ll look only at a small number of interesting companies (Equinor, Aker, Vår Energi, and Shell) and put the rest in a category called “Other” (which we’ll label as `"Other" so we can make it italic in the legend later).
europe_shp <- read_sf(
"./data/CNTR_RG_03M_2024_4326/CNTR_RG_03M_2024_4326.shp"
) |>
janitor::clean_names()
oil_license_areas <- read_sf("./data/prlAreaCurrent/prlAreaCurrent.shp") |>
janitor::clean_names() |>
mutate(
operator_cat = case_when(
str_detect(op_long_name, "Equinor") ~ "Equinor",
str_detect(op_long_name, "Aker") ~ "Aker BP",
str_detect(op_long_name, "Vår") ~ "Vår Energi",
str_detect(op_long_name, "Shell") ~ "Shell",
TRUE ~ "_Other_"
),
)
Let’s look at the license holders that operate the largest total area with oil fields. We can calculate the area by using the st_area() function in a regular mutate() call. Sometimes (like in this data here) you’ll get an error that says something like “Loop 0 is not valid: Edge 9 has duplicate vertex with edge 123” or whatever. What might often help as a workaround is to transform the data to a different CRS using the st_transform() function. This works in this case too by transforming the geometry to CRS 3857. Then we can for each operator
We’ll ignore the issue with different company names here
calculate the total size of the oil fields licensed and the number of licenses they hold. I’ll also add the as_tibble() after calculating the size, because if one doesn’t the geometry column will follow along (even if you actively drop it with select(-geometry)) because it isn’t a regular data frame. Sometimes it’s just easier to transform it to a tibble for some purposes.
oil_license_areas |>
st_transform(crs = 3857) |>
mutate(field_size = st_area(geometry)) |>
as_tibble() |>
filter(active == "Y") |>
group_by(op_long_name) |>
summarise(
field_size = sum(field_size),
n_licenses = n()
) |>
arrange(-field_size) |>
slice_head(n = 10)
# A tibble: 10 × 3
op_long_name field_size n_licenses
<chr> [m^2] <int>
1 Equinor Energy AS 174787304216. 211
2 Vår Energi ASA 137223619788. 62
3 Aker BP ASA 91540799049. 131
4 ORLEN Upstream Norway AS 17814969002. 5
5 Harbour Energy Norge AS 16658268890. 25
6 A/S Norske Shell 14708422229. 3
7 OMV (Norge) AS 14636925517. 12
8 INPEX Idemitsu Norge AS 14509413818. 3
9 DNO Norge AS 7147071288. 18
10 Petrolia NOCO AS 6150270503. 4
Unsurprisingly, the Norwegian majority state-owned oil company Equinor (formally Statoil) ranks on top for both total area and the number of licenses. Private companies Vår Energi and Aker follow suit. You’ll notice the field_size column isn’t a regular numerical column. If you check the type of the column you’ll see it shows as a “Units: [m^2] num” which is a column type that derives from {sf}.

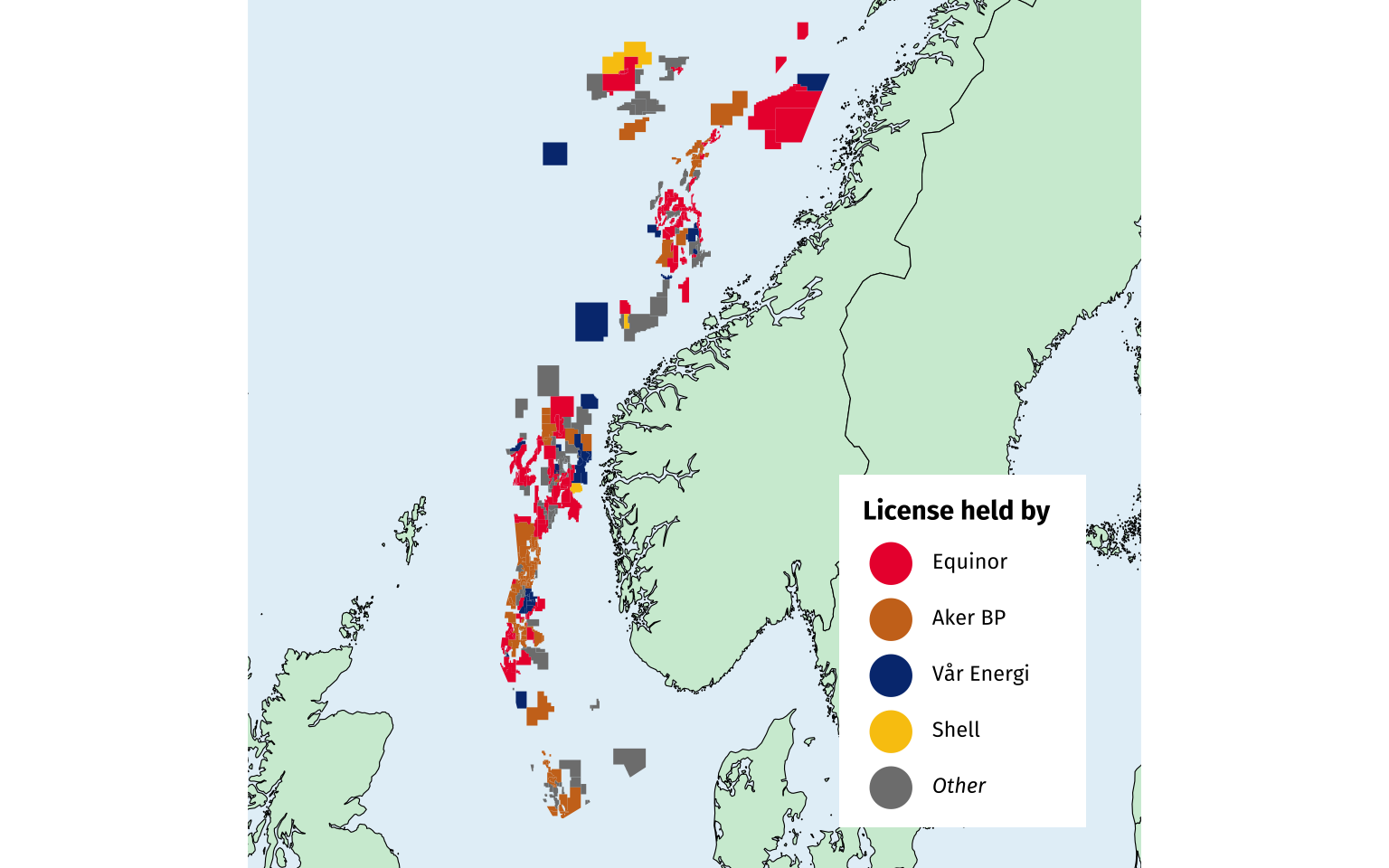

While st_area() is fun and useful, let’s now create a map of the oil fields and their license holders. We’ll use some of the regular tricks to make the colors look nice and give the legend some decent aestetics. Since the map of the oil fields is just a number of roughly square features in the middle of the oceann, we’ll plot a map of the countries in the area first to serve as a reference point. Then we can add the oil fields on top and give them a color linking them to the license holder.
oil_license_areas |>
filter(active == "Y") |>
ggplot(aes(geometry = geometry)) +
geom_sf(
data = europe_shp,
fill = "#D0ECD6",
color = "black",
show.legend = FALSE
) +
geom_sf(
aes(fill = operator_cat),
color = "transparent",
key_glyph = "point"
) +
labs(fill = "License held by") +
scale_fill_manual(
limits = c("Equinor", "Aker BP", "Vår Energi", "Shell", "_Other_"),
values = c(
"Equinor" = "#EB003A",
"Aker BP" = "#CC731F",
"Vår Energi" = "#05377F",
"Shell" = "#F9C60D",
"_Other_" = "grey50"
),
guide = guide_legend(override.aes = list(shape = 21, size = 8)),
) +
coord_sf(xlim = c(-5, 20), ylim = c(56, 67.5)) +
theme_void(base_family = "custom") +
theme(
panel.background = element_rect(fill = "#E4F1F8", color = "transparent"),
legend.position = "inside",
legend.position.inside = c(0.8, 0.25),
legend.background = element_rect(fill = "white", color = "transparent"),
legend.margin = margin(10, 15, 5, 10, unit = "pt"),
legend.title = element_text(face = "bold"),
legend.text = ggtext::element_markdown(),
legend.key = element_rect(fill = "transparent"),
)
I’ve chosen to focus only on the area below the Arctic Circle. However, there are active oil fields in the Barentz Sea and several Norwegian political parties have opened up the possibility for drilling in the Lofoten area which would do great harm to the nature there (as it does everywhere else).

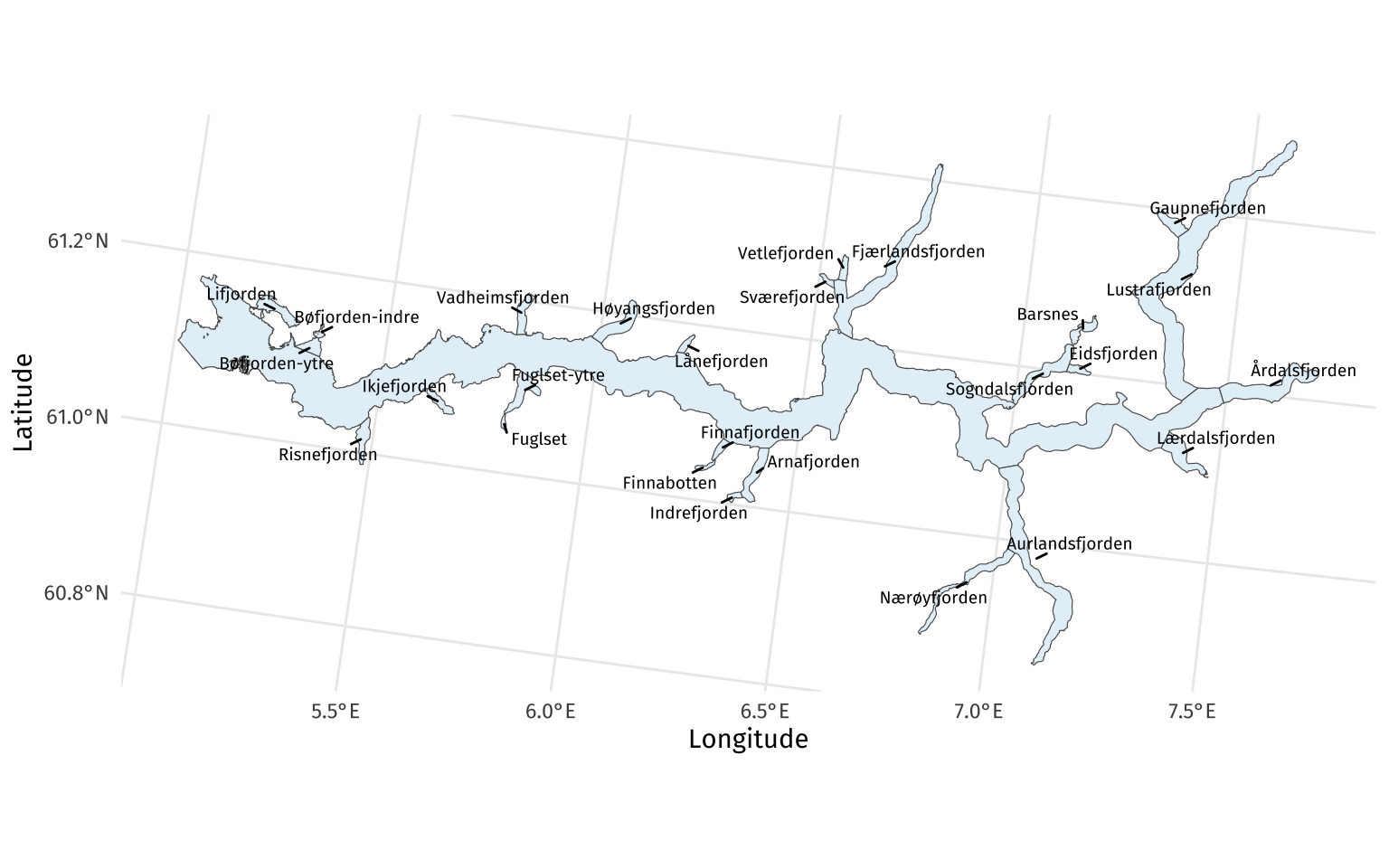

Let’s create another plot. This time I accessed the Fjord catalog
You can explore the map interactively here
, a collection of all coastal areas and particular fjords with very high resolution. When loading this dataset I noticed that it failed to parse some of the Norwegian characters (æøå) so we need to specify the encoding to make it work through options = "ENCODING=LATIN1".
We need to filter on ID sometimes if the name is not exclusive (turns out there are a lot of fjords that contain the string “Indre” or “Eid” unsurprisingly enough).
For example, if you wanted to plot the upper part of the Oslo fjord you could filter instead for "hurum|oslo|bonnefjorden|breidangen|breiangen|drammen|sandebukten"
df_fjord_catalogue <- st_read(
"./data/fjordkatalogen_omrade/fjordkatalogen_omrade.shp",
options = "ENCODING=LATIN1",
quiet = TRUE
) |>
janitor::clean_names() |>
filter(
fjordid %in%
c(
"02.80.02.01.00",
"02.80.02.06.01",
"02.80.02.13.02",
"02.80.02.21.02",
"02.80.02.21.01",
"02.80.02.22.00"
) |
str_detect(
navn,
"Årdalsfjorden|Lustra|Gaupne|Lærdal|Aurland|Nærøyfjorden|Sogndal|Barsnes"
) | # Broken up for readability
str_detect(
navn,
"Fjærland|Vetle|Svære|Arna|Finna|Låne|Høyang|Fuglset|Vadheim|Ikje|Risne"
)
)
df_fjords_centroids <- df_fjord_catalogue |>
st_centroid() |>
mutate(
lon = st_coordinates(geometry)[, 1],
lat = st_coordinates(geometry)[, 2]
)
df_fjord_catalogue |>
ggplot() +
geom_sf(fill = "#E4F1F8") +
ggrepel::geom_text_repel(
data = df_fjords_centroids,
aes(x = lon, y = lat, label = navn),
min.segment.length = 0,
family = "custom",
size = 2.5,
seed = 42
) +
labs(x = "Longitude", y = "Latitude") +
theme_minimal(base_family = "custom")
GeoPackage
GeoPackage is a more modern alternative, initially released in 2014. It is built as a SQLite database which allows it to store both geospatial data and tabular data. It is fairly easy to use it in both Python and R in addition to more traditional GIS software. Its main advantage I think is that it uses a “tile pyramid” solution where data is stored hierarchically, such that is is more efficient to respond to different zoom levels See the FAQ for more details . As it is (relatively) new, not all data repositories include it, but there are tools to convert GeoJSON to GeoPackage if you were so inclined.
When you search “GeoPackage Norway” you’ll quickly end up on gadm.org. You should avoid this website as the municipalities aren’t up to date as of time of writing (February 2026). What I did instead for this section of the article is to use the aforementioned conversion tool to get a GeoPackage from these GeoJSONs. The EU Eurostat website mentioned earlier also allows for downloads in the GeoPackage format. We’ll download the data with country borders from that one. Here’s what these look like:
st_layers("./data/Kommuner-L.gpkg")
Driver: GPKG
Available layers:
layer_name geometry_type features fields crs_name
1 Kommuner-L 357 4 WGS 84
st_layers("./data/CNTR_RG_03M_2024_4326.gpkg")
Driver: GPKG
Available layers:
layer_name geometry_type features fields crs_name
1 CNTR_RG_03M_2024_4326.gpkg Multi Polygon 263 11 WGS 84
Then we can specify the layer we want in the layer argument in st_read() (but we don’t really need it as both of them only have a single layer). As always, we’ll use the clean_names() function from {janitor} package to clean the column names.
norway_kommuner_gpkg <- st_read(
"./data/Kommuner-L.gpkg",
layer = "Kommuner-L"
) |>
janitor::clean_names()
world_gpkg <- st_read("./data/CNTR_RG_03M_2024_4326.gpkg") |>
janitor::clean_names()
norway_gpkg <- world_gpkg |>
filter(cntr_id == "NO")
Let’s then also have a look at the data frame for the municipalities.
norway_kommuner_gpkg |>
glimpse()
Rows: 357
Columns: 5
$ id <chr> "4216", "5053", "3440", "4014", "4226", "5514", "4020", …
$ kommunenummer <chr> "4216", "5053", "3440", "4014", "4226", "5514", "4020", …
$ name <chr> "Birkenes", "Inderøy", "Øyer", "Kragerø", "Hægebostad", …
$ kommunenavn <chr> "Birkenes", "Inderøy", "Øyer", "Kragerø", "Hægebostad", …
$ geom <MULTIPOLYGON [°]> MULTIPOLYGON (((8.048822 58..., MULTIPOLYGO…
This data frame contains a number of columns we’ve seen before. The geom column contains the data we need for our plots. The other columns contain various subdivisions of the geographical features and various codes.

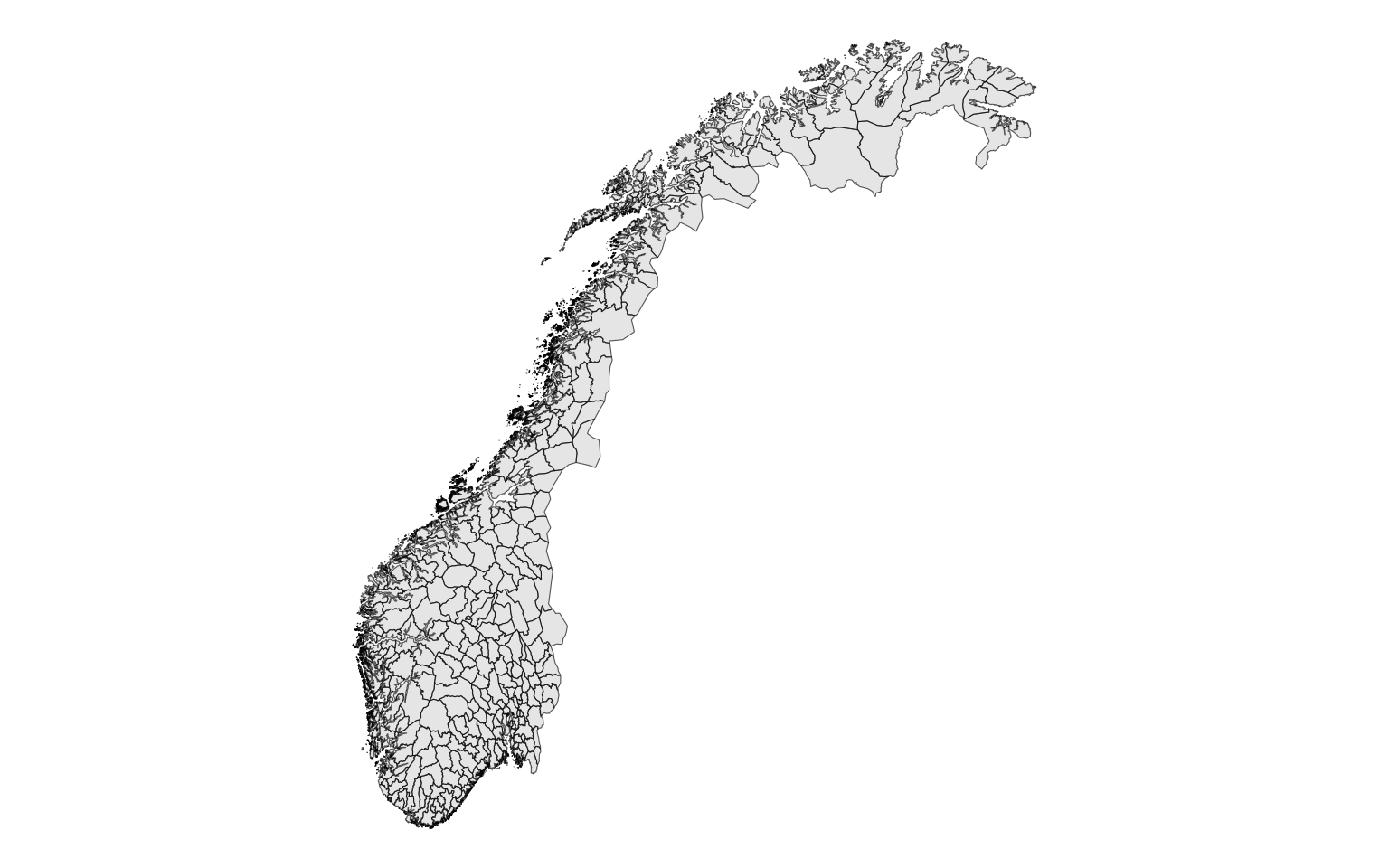

Let’s use this to create the simplest possible figure: the outlines of the municipalities.
norway_kommuner_gpkg |>
ggplot(aes(geometry = geom)) +
geom_sf() +
theme_void()
This is boring, let’s try to add some actual data. For this I download some data from Statistics Norway (SSB) about land use per municipality. It tracks how much land in the municipality is occupied with residential, leasure, and industry buildings, agriculture, forests, glaciers, ice, and snow, religious and social use, and so on. We can calculate the percentage of each municipality occupied by forests for example and plot that. We can preprocess the data as follows:
df_land_use <- read_delim(
"./data/arealbruk.csv",
delim = ";",
skip = 1,
locale = locale(encoding = "latin1")
) |>
janitor::clean_names() |>
separate(region, into = c("code", "kommune"), sep = " ", extra = "merge") |>
rowwise() %>%
mutate(total = sum(c_across(starts_with("areal_")), na.rm = TRUE)) |>
ungroup() |>
mutate(
kommunenummer = str_remove(code, "K-"),
forest_percentage = areal_2025_17_skog / total,
)
norway_kommuner_gpkg_wdata <- norway_kommuner_gpkg |>
left_join(
df_land_use,
by = "kommunenummer",
)

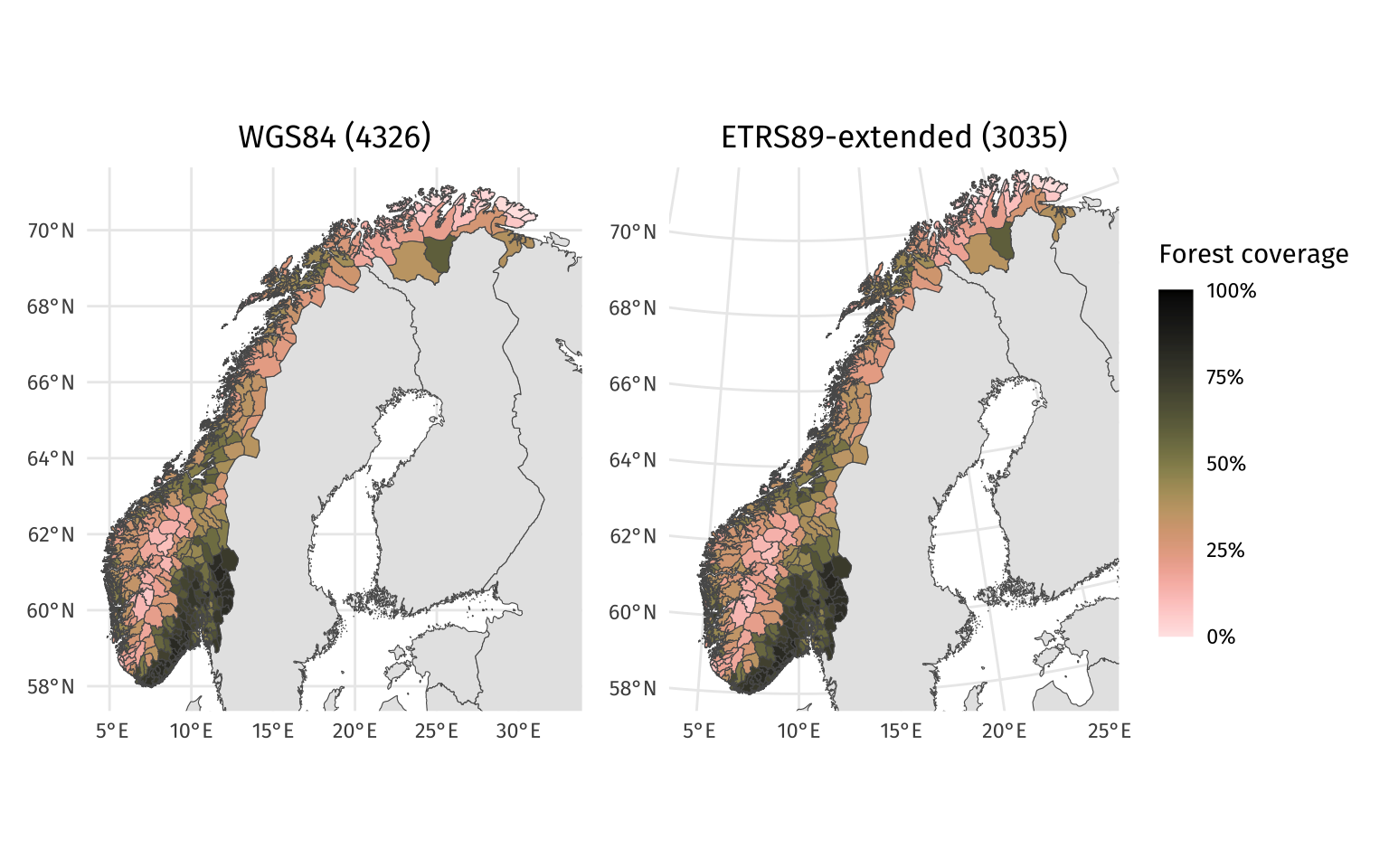

And then create a plot as we did before. But in this case I also want to highlight the impact picking different coordinate systems can have. We’ll show WGS84 (or “4326”) on the left and ETRS89-extended on the left (or “3035”). It is important to note that WGS84 and “4326” are not the same reference system, they are for all our purposes today close enough, but they are different systems. This article lists the differences. The former uses coordinates as they are shown in the ggplot’s (i.e in degrees from 0˚ to 180˚) while the second one is in meters which means the values are really large but also very precise once you know the reference point. The former (WGS84/4326) is easier to use typically but the ETRS89-extended/3035 has some advantages, one being the projection in ggplot that accounts for the curvature of the earth, thereby addressing to some degree the issue with the Mercator projection as it is the basis for the WGS84/4326 projection This blogpost here goes into more depth on projections in R .
plot_forests_wgs84 <- norway_kommuner_gpkg_wdata |>
ggplot(aes(geometry = geom, fill = forest_percentage)) +
geom_sf(data = world_gpkg, fill = "grey90") +
geom_sf() +
labs(
title = "WGS84 (4326)",
fill = "Forest coverage"
) +
scico::scale_fill_scico(
limits = c(0, 1),
labels = scales::label_percent(),
palette = "turku",
direction = -1,
na.value = "white",
guide = guide_colorbar(barwidth = 1, barheight = 10)
) +
coord_sf(xlim = c(5, 32.5), ylim = c(58, 71))
plot_forests_etrs89 <- norway_kommuner_gpkg_wdata |>
st_transform(crs = 3035) |>
ggplot(aes(geometry = geom, fill = forest_percentage)) +
geom_sf(data = world_gpkg |> st_transform(3035), fill = "grey90") +
geom_sf() +
labs(
title = "ETRS89-extended (3035)",
fill = "Forest coverage"
) +
scico::scale_fill_scico(
limits = c(0, 1),
labels = scales::label_percent(),
palette = "turku",
direction = -1,
na.value = "white",
guide = guide_colorbar(barwidth = 1, barheight = 10)
) +
coord_sf(xlim = c(4e6, 5.2e6), ylim = c(3.9e6, 5.35e6))
plot_forests_wgs84 +
plot_forests_etrs89 +
plot_layout(guides = "collect") &
theme_minimal(base_family = "custom") +
theme(
plot.title = element_text(hjust = 0.5),
legend.title = element_text(margin = margin(b = 10, unit = "pt")),
legend.ticks = element_blank(),
)
In the example above I very much prefer the ETRS89-extended/3035 version for plotting Norway, as it gives the lower part of the country a bit more “breathing room”. The WGS84/4326 projection makes norway look even more “squished” along the longitudinal plane.

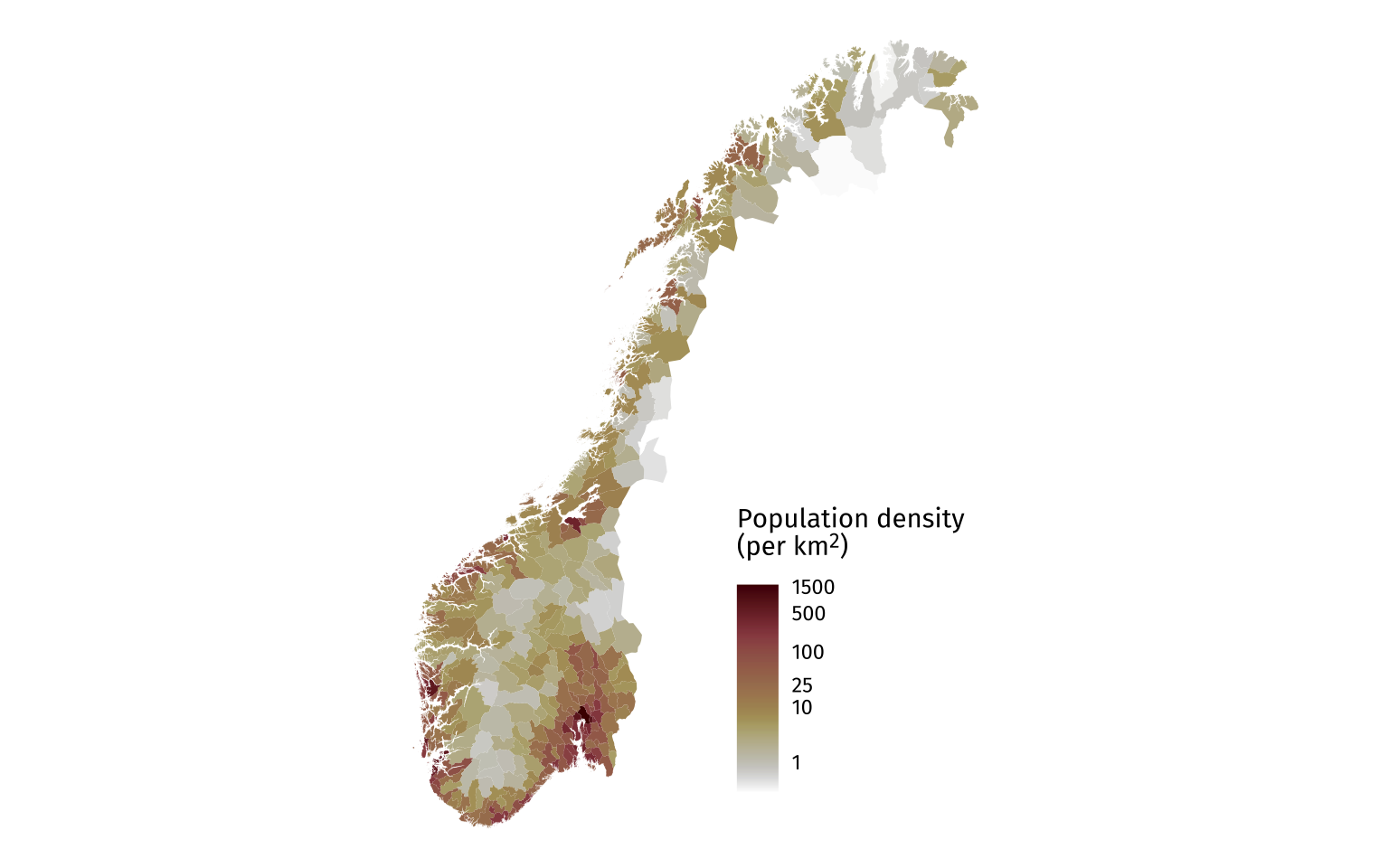

Click here for another plot doing something similar
df_population <- read_delim(
"./data/ssb_befolkning_kommuner.csv",
delim = ";",
skip = 1,
locale = locale(encoding = "latin1")
) |>
rename_with(~ str_remove(.x, "2025K3 ")) |>
janitor::clean_names() |>
separate("region", into = c("code", "name"), sep = " ", extra = "merge") |>
mutate(
kommunenummer = str_remove(code, "K-"),
)
norway_kommuner_gpkg |>
left_join(df_population, by = "kommunenummer") |>
st_transform(3035) |> # Transform into ETRS89-extended temporarily
mutate(
total_area = st_area(geom),
pop_density = as.numeric(
befolkning_ved_utgangen_av_kvartalet / (total_area / 1e6)
),
) |>
st_transform(4326) |> # Turn it back to WGS84 after calculations
ggplot(aes(geometry = geom, fill = pop_density)) +
geom_sf(color = "transparent") +
labs(
fill = "Population density<br>(per km<sup>2</sup>)"
) +
scico::scale_fill_scico(
trans = "log2",
breaks = c(1, 10, 25, 100, 500, 1500),
direction = -1
) +
coord_sf(crs = 3035) +
theme_void(base_family = "custom") +
theme(
legend.position = "inside",
legend.position.inside = c(0.75, 0.25),
legend.title = ggtext::element_markdown(
margin = margin(b = 10, unit = "pt")
),
legend.ticks = element_blank(),
legend.background = element_rect(color = "transparent", fill = "white")
)
Another main advantage is the ability to store multiple layers in a single data file. For example, look at this data below from the Norwegian Miljødirektoratet about visual inspections of the sea bed.
st_layers("./data/visuell_kartlegging_eksport.gpkg")
Driver: GPKG
Available layers:
layer_name geometry_type features fields crs_name
1 VISUAL_INSPECTION 3D Measured Point 2832953 66 ETRS89 / UTM zone 33N
2 SURVEY_INFO 3D Measured Point 271 28 ETRS89 / UTM zone 33N
3 PHOTO_LOCATIONS 3D Measured Point 89443 17 ETRS89 / UTM zone 33N
The VISUAL_INSPECTION layer has a ton of features (rows) while the metadata (SURVEY_INFO) contains a lot fewer. Also the number of variables recorded for each row is different. The data stored in this GeoPackage is essentially a set of data frames, each with their geospatial information. Let’s for example look at the metadata.
df_havbunn_survey <- st_read(
"./data/visuell_kartlegging_eksport.gpkg",
layer = "SURVEY_INFO"
) |>
janitor::clean_names()

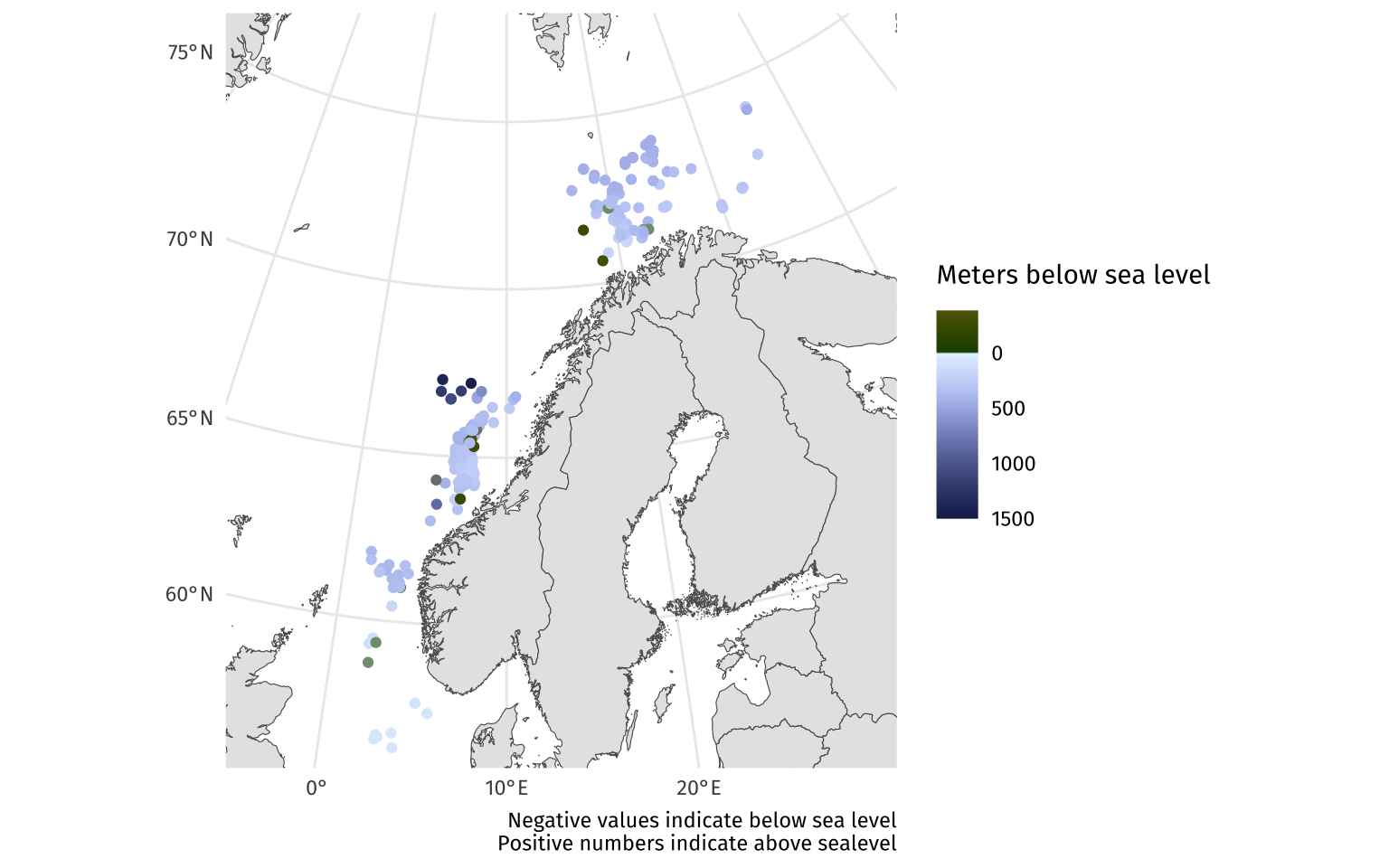

And let’s also create a plot. This is where you’ll notice that geom_sf() also can deal with points instead of polygons. When the geospatial data is a collection of coordinate points they’ll show up as if drawn by geom_point() with a regular latitude and longitude as the x- and y-coordinates
You could also convert the geospatial column to x- and y-coordinates if you were so inclined
. We’ll plot the survey observations and the sea depth at those coordinates. Since some measurements were taken above sea level (or at least recorded as such), it allows us to use a color palette specifically for these kinds of situations with a hard “cut-off” at 0. We want to differentiate clearly between the negative and positive values (positive values are meters below sealevel). So we’ll use the "oleron" palette from the scico package.
df_havbunn_survey |>
st_transform(crs = 3035) |>
ggplot(aes(color = water_depth)) +
geom_sf(
data = world_gpkg,
aes(geometry = geom),
inherit.aes = FALSE
) +
geom_sf() +
labs(
color = "Meters below sea level",
caption = "Negative values indicate below sea level\nPositive numbers indicate above sealevel"
) +
scico::scale_color_scico(
palette = "oleron",
direction = -1,
midpoint = 0,
limits = c(NA, 1500),
guide = guide_colorbar(reverse = TRUE)
) +
coord_sf(xlim = c(3.5e6, 5.5e6), ylim = c(3.75e6, 6e6)) +
theme_minimal(base_family = "custom") +
theme(
legend.title = element_text(margin = margin(b = 10, unit = "pt")),
legend.ticks = element_blank(),
)
This post has become long enough, so on to the last format.
Geodatabase
A geodatabase is exactly as the name suggests, a relational database for geospatial data. Geodatabases are typically suffixed by the .gdb extension, but on for example Mac you can easily click on such a “file” and it opens a directory with .gdbtable, .gdbindexes, .gdbtablx, and .spx files. However, when we read the dataset we can just point it to the .gdb file.
Let’s dive straight in, we know the trick by now. I downloaded some data from the Norges vassdrags- og energidirektorat (NVE), or the Norwegian Water Resources and Energy Directorate in English. From their open data page we can download a dataset on rivers (elv) and lakes (innsjø). These contain the geospatial references for all rivers and lakes in Norway. These datasets are very detailed and are very large as you can imagine. We can look at the layers in the Geodatabase by using st_layers() and it will tell us how many entries both datasets contain:
st_layers(
"./data/NVEData_rivers.gdb/"
)
Driver: OpenFileGDB
Available layers:
layer_name geometry_type features fields crs_name
1 Hovedelv Multi Line String 6262 9 ETRS89 / UTM zone 33N
2 Elvenett Multi Line String 1718354 18 ETRS89 / UTM zone 33N
3 TverrprofilLinje Multi Line String 3716 11 ETRS89 / UTM zone 33N
4 TverrprofilPunkt Point 175026 15 ETRS89 / UTM zone 33N
5 ElvDybdedata Multi Polygon 91 20 ETRS89 / UTM zone 33N
6 ElvDybdekurve Multi Line String 1171 6 ETRS89 / UTM zone 33N
st_layers(
"./data/NVEData_lakes.gdb/"
)
Driver: OpenFileGDB
Available layers:
layer_name geometry_type features fields crs_name
1 Innsjo Multi Polygon 267192 21 ETRS89 / UTM zone 33N
2 InnsjoDybdedata Multi Polygon 686 34 ETRS89 / UTM zone 33N
3 InnsjoDybdekurve Multi Line String 27886 7 ETRS89 / UTM zone 33N
4 InnsjoDybdemalt Multi Polygon 530 7 ETRS89 / UTM zone 33N
5 InnsjoDybdepunkt Point 28512 6 ETRS89 / UTM zone 33N
These first dataset contains about 6000 “main” rivers, and about 1.7 million entries for minor creeks and brooks and so on. The second one contains about 260.000 lakes of various sizes. It also contains data on lake depth, and the depth curves. This is obviously a massive dataset, so we’ll need to restrict ourselves to a certain area of interest when we get to the plotting stage. Since we’re just interested in the main rivers and the regular lake data we can just load those.
df_rivers <- st_read(
"./data/NVEData_rivers.gdb/",
layer = "Hovedelv"
) |>
janitor::clean_names()
df_lakes <- st_read(
"./data/NVEData_lakes.gdb/",
layer = "Innsjo"
) |>
janitor::clean_names()

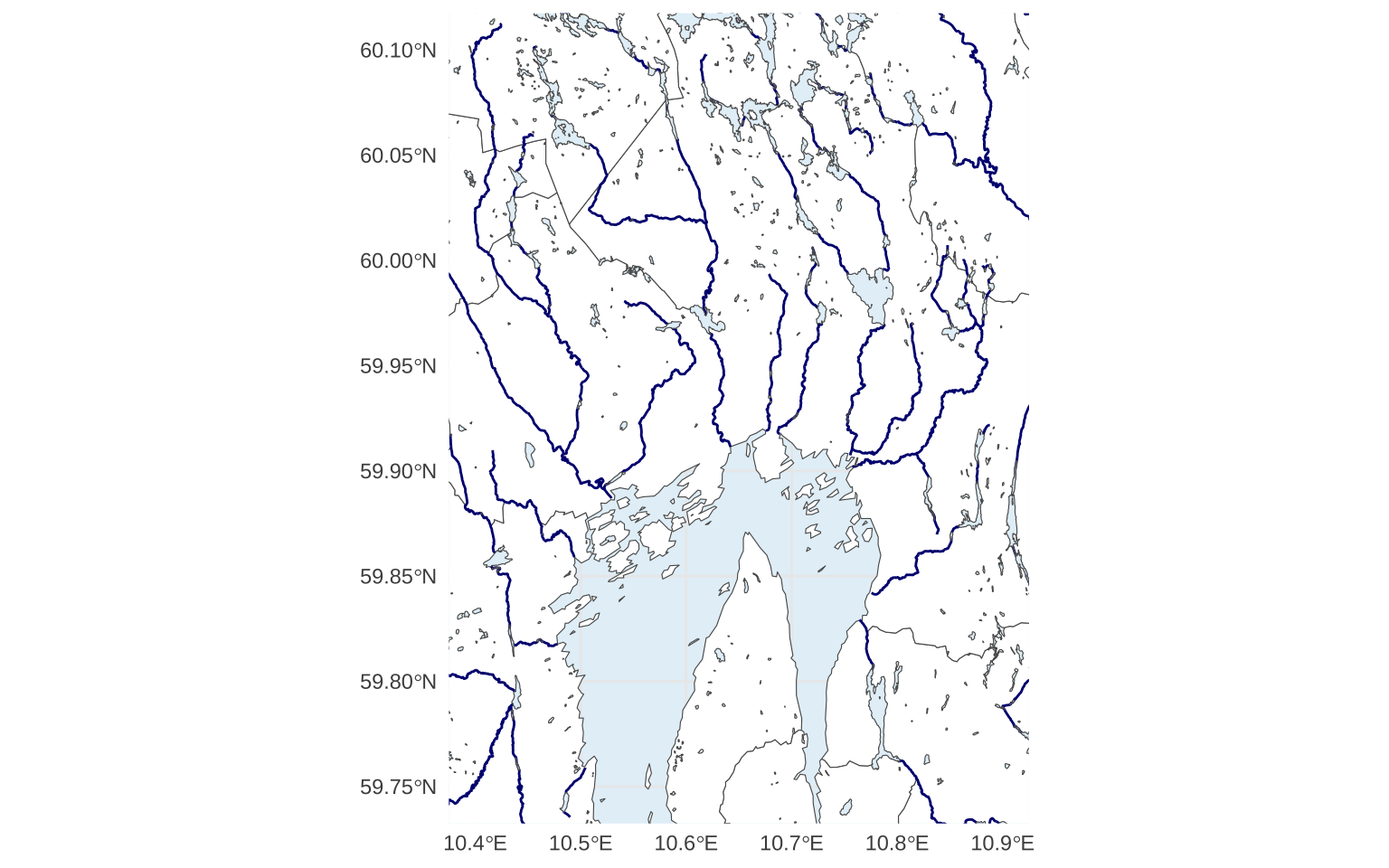

Then we can proceed to the plotting stage. Here the order of the geoms is very important. We’ll first plot the GeoPackage dataset we used earlier to get some boundaries. Then we’ll plot the rivers on top. We’ll transform it to the WGS 84 format from earlier (4326). Then we’ll plot the lakes on top. We’ll restrict ourselves to the greater Oslo area to allow plotting to finish before my computer runs out of memory
And the plot is actually readable
.
df_rivers |>
st_transform(4326) |>
ggplot() +
geom_sf(data = norway_kommuner_gpkg, fill = "white") +
geom_sf(color = "navyblue") +
geom_sf(data = df_lakes, fill = "#E4F1F8") +
coord_sf(xlim = c(10.4, 10.9), ylim = c(59.75, 60.1)) +
theme_minimal() +
theme(
panel.background = element_rect(fill = "#E4F1F8", color = "transparent")
)
We can do the same tricks as before and for example calculate which lakes are the largest (I’m aware the dataset contains a precomputed shape_area column, but we’re trying to be educational here and calculate it ourselves). Let’s look at the 10 largest lakes. The as_tibble() is necessary to drop the column with the geospatial data that follows naturally when loading a dataset with st_read().
df_lakes |>
mutate(calc_area = st_area(SHAPE)) |>
as_tibble() |>
slice_max(calc_area, n = 10) |>
select(
navn,
hoyde_moh,
calc_area
)
# A tibble: 10 × 3
navn hoyde_moh calc_area
<chr> <int> [m^2]
1 Mjøsa 123 369280270.
2 Røsvatnet 383 218048869.
3 Femunden 662 203836472.
4 Randsfjorden 135 140402764.
5 Tyrifjorden 63 136560538.
6 Store Le 103 133661933.
7 Snåsavatnet 22 122173587.
8 Tunnsjøen 358 100530017.
9 Limingen 418 93271146.
10 Umbukta (Øver-Uman i Sverige) 525 85016595.
Then we can try plotting the 9 largest lakes Because it’ll make a nice 3x3 grid . In a normal ggplot you’d just something like this:
df_lakes |>
mutate(calc_area = st_area(SHAPE)) |>
slice_max(calc_area, n = 9) |>
ggplot() +
geom_sf() +
facet_wrap(~navn)
This doesn’t look good, we would usually add scales = "free" to avoid each subplot having the same coordinate boundaries, but if you try that you’ll get the following error:
Error in `draw_panels()`:
! `facet_wrap()` can't use free scales with `coord_sf()`.

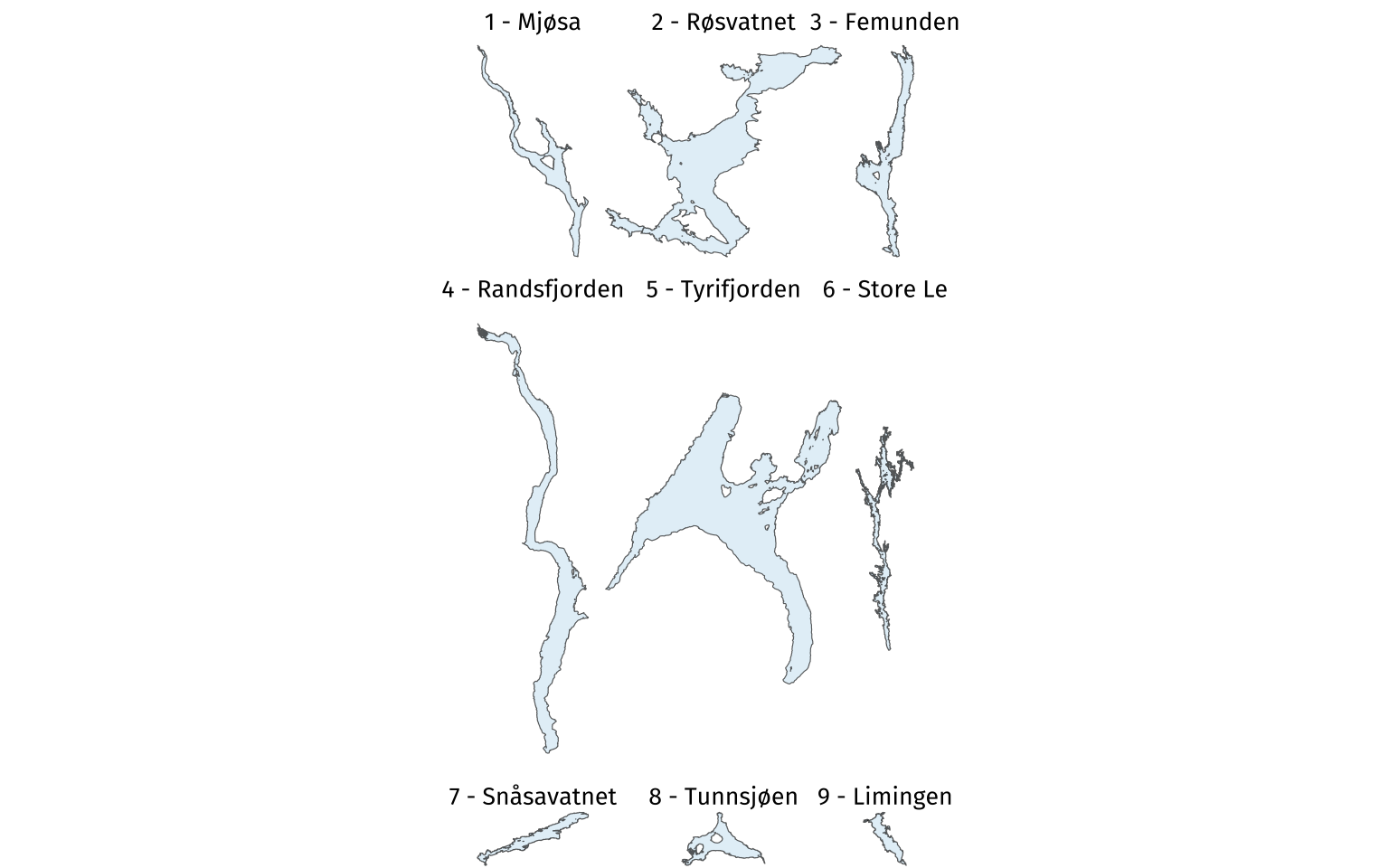

Instead we’d have to do something a bit more hacky. We can for example loop through the lakes of interest and create a separate plot for each and store them in a list. And then we’ll use {patchwork} to plot each of the 9 subplots on a separate canvas. To get the lake of interest we can sort the dataframe in descending order and slide the relevant iteration from the dataframe. There are probably more efficient ways to do it, but this is a pedagogical choice. Whether it’s a good one I don’t know.
lake_plots <- c()
for (lk in seq(9)) {
df_lake_tmp <- df_lakes |>
mutate(calc_area = st_area(SHAPE)) |>
arrange(desc(calc_area)) |>
mutate(label = str_glue("{row_number()} - {navn}")) |>
slice(lk)
lake_plots[[lk]] <- df_lake_tmp |>
ggplot() +
geom_sf(fill = "#E4F1F8") +
labs(title = df_lake_tmp |> pull(label))
}
lake_plots[[1]] +
lake_plots[[2]] +
lake_plots[[3]] +
lake_plots[[4]] +
lake_plots[[5]] +
lake_plots[[6]] +
lake_plots[[7]] +
lake_plots[[8]] +
lake_plots[[9]] &
theme_void(base_family = "custom") +
theme(
plot.title = element_text(size = 10, hjust = 0.5)
)
We could for example do the same for the top 9 lakes by elevation and restrict ourselves to lakes important enough to warrant a name. Note that when we don’t use as_tibble(), we don’t need to explicitly select the SHAPE column:
df_lakes |>
mutate(calc_area = st_area(SHAPE)) |>
drop_na(navn) |>
slice_max(hoyde_moh, n = 9) |>
select(
navn,
hoyde_moh,
)
Simple feature collection with 9 features and 2 fields
Geometry type: MULTIPOLYGON
Dimension: XY
Bounding box: xmin: 134039.4 ymin: 6846975 xmax: 201926.2 ymax: 6935728
Projected CRS: ETRS89 / UTM zone 33N
navn hoyde_moh SHAPE
1 Juvvatnet 1836 MULTIPOLYGON (((148790.2 68...
2 Trollsteintjønne 1754 MULTIPOLYGON (((161625.2 68...
3 Skjervetjønne 1725 MULTIPOLYGON (((167893.5 68...
4 Hindtjønnin 1724 MULTIPOLYGON (((171115.9 68...
5 Trollsteintjønne 1708 MULTIPOLYGON (((160208.3 68...
6 Hindtjørnin 1691 MULTIPOLYGON (((172006.3 68...
7 Leirvatnet 1682 MULTIPOLYGON (((134231.1 68...
8 Repptjønna 1678 MULTIPOLYGON (((195389.5 69...
9 Larstjørnin 1672 MULTIPOLYGON (((201673.5 69...

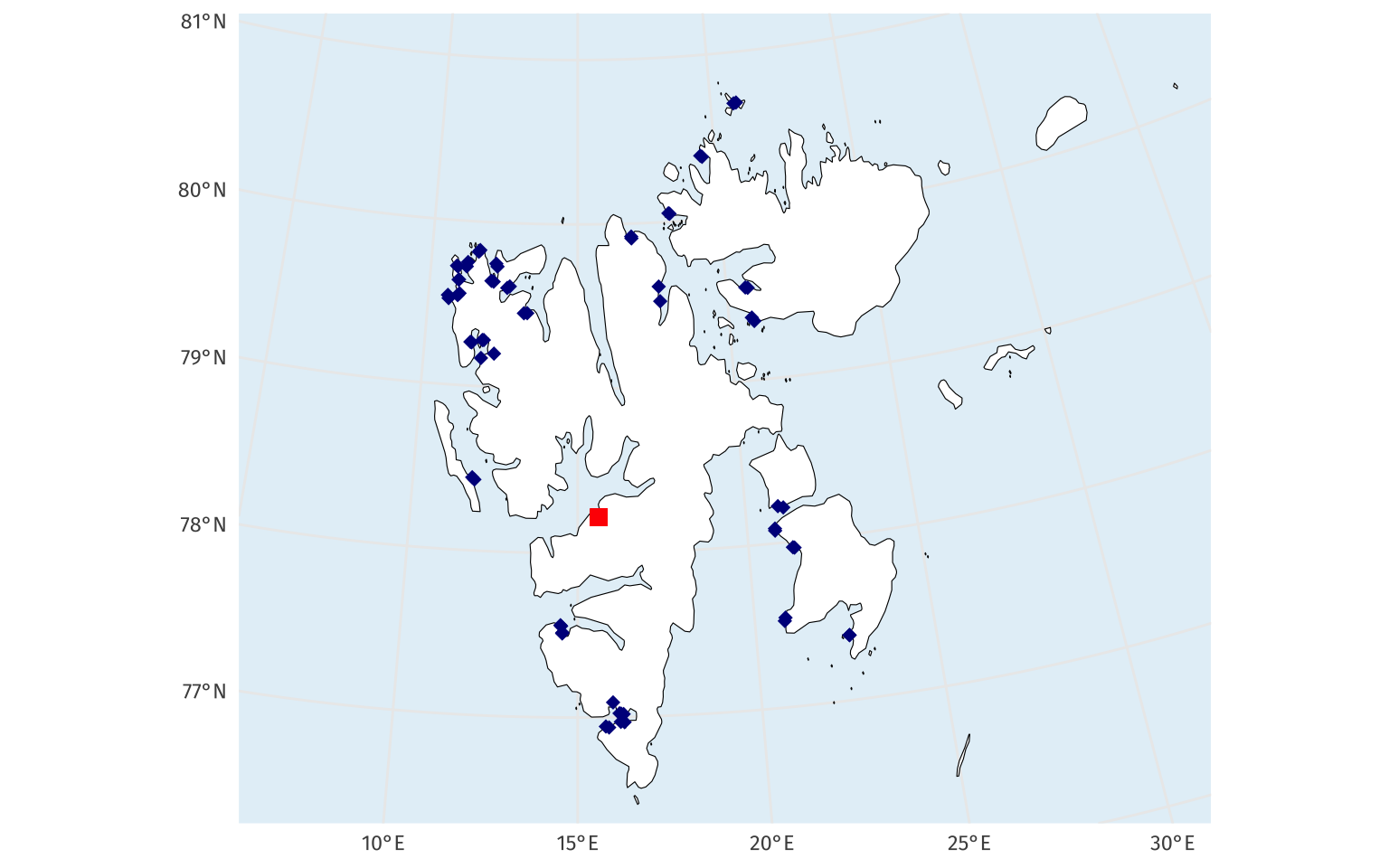

Here’s another example using the Geodatabase format. Here we can use data on the legal landing sites for organized tourism in Svalbard, downloaded from the Miljødirektoratet (the Norwegian Environmental Agency). We’ll keep it simple. We’ll add a red mark to indicate where Longyearbyen is located to give some reference point for the island.
df_svalbard <- st_read(
"./data/Ilandstigningslokaliteter_21_svalbard_25833_FILEGDB.gdb",
quiet = TRUE
)
df_svalbard |>
ggplot(aes(geometry = SHAPE)) +
geom_sf(
data = europe_shp,
mapping = aes(geometry = geometry),
fill = "white",
color = "black",
show.legend = FALSE
) +
geom_sf(color = "darkblue", shape = 18, size = 2.5) +
geom_point(
mapping = aes(x = 514438, y = 8682628),
color = "red",
size = 3,
shape = "square"
) +
labs(x = NULL, y = NULL) +
coord_sf(xlim = c(3e5, 9e5), ylim = c(8.5e6, 9e6)) +
theme_minimal(base_family = "custom") +
theme(
panel.background = element_rect(fill = "#E4F1F8", color = "transparent")
)

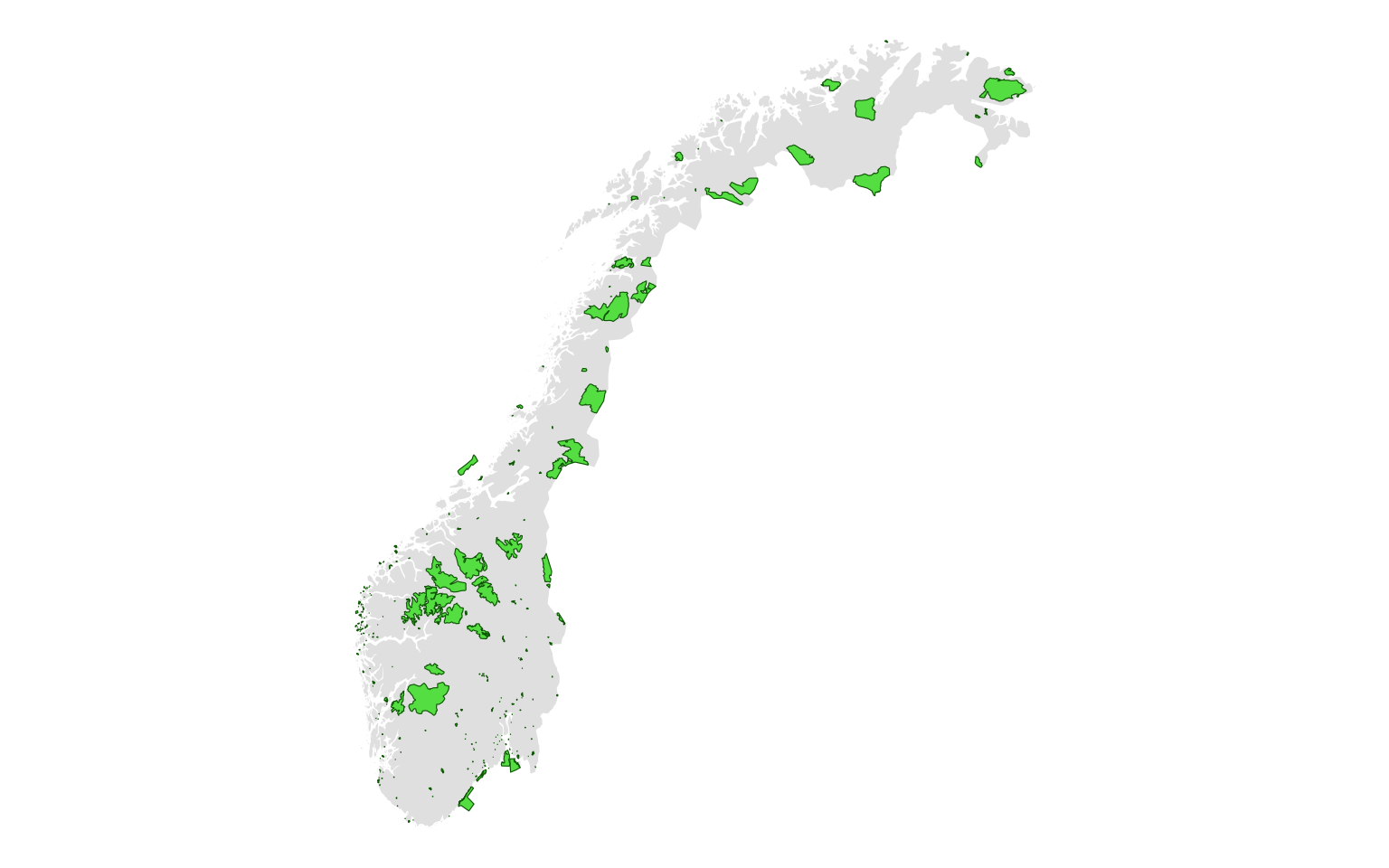

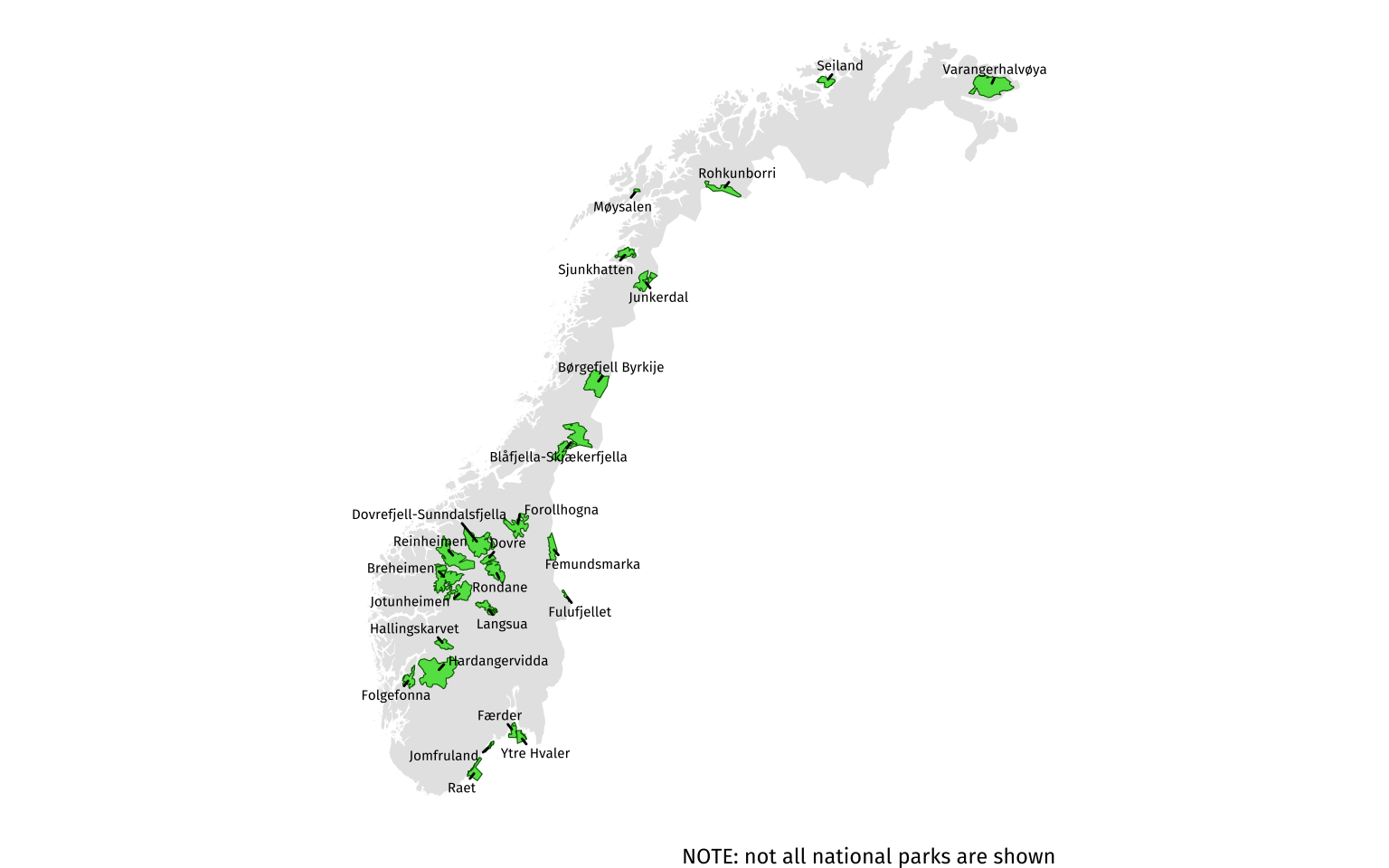

This has become a long post already, so let’s just quickly wrap it up. We’ll do one final project. While I was looking for datasets for this post I tried to find a geospatial dataset of national parks in Norway. However, I couldn’t find a high quality one, so I downloaded a poor quality one (I think it’s poor quality at least) and thought we could go through some cleaning together

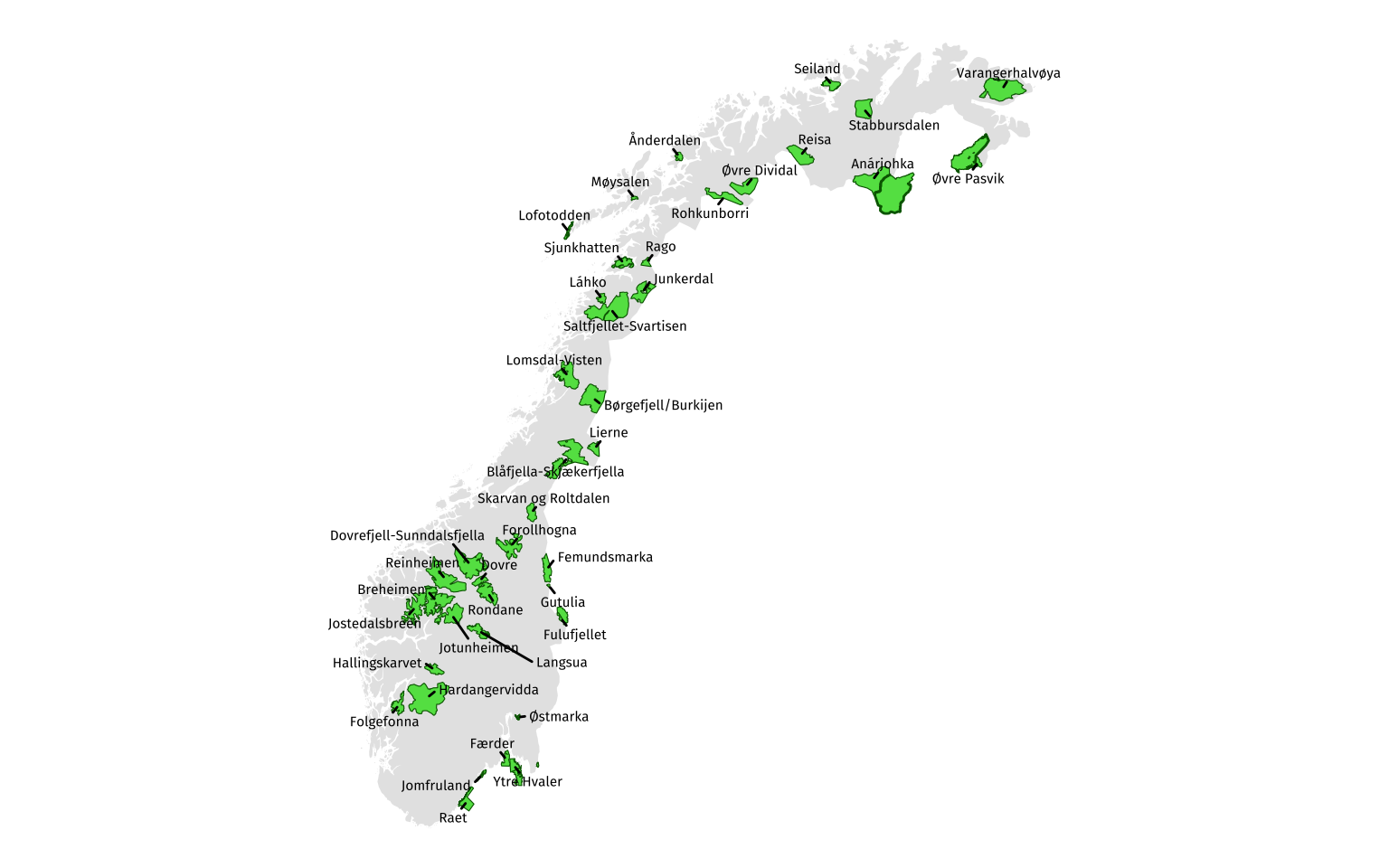

There is a higher quality one here if you are interested
. There is a map on the norgesnasjonalparker.no website, but it’s not a GeoJSON like the one from a previous post, instead it’s a bunch of SVG files and I couldn’t find an easy (and free) way to get the SVGs in the correct format locally and convert them. So let’s do some data cleaning of geospatial data. The data I did find was from the Artsdatabanken. It looks like a page regular users aren’t supposed to arrive at, but we’ll take it. This page lists all national parks. However, I downloaded the polygon.32633.geojson file and saved it as nasjonalparker.geojson locally. I also downloaded the metadata.json file to use later. The GeoJSON file contains all national parks in a single dataset, the metadata file contains a bunch of other information about the parks. When inspecting the layers we can see there are 32 features in the GeoJSON dataset. However, Norway has 48 national parks so there is either some features that contain the outlines for multiple national parks, or some of them are missing. However, first we need to clean the dataset. We’ll load the data, transform it to EPSG:4326 format and save it using st_write().
st_layers("./data/nasjonalparker.geojson")
Driver: GeoJSON
Available layers:
layer_name geometry_type features fields crs_name
1 polygons 32 1 WGS 84 / UTM zone 33N
df_nasjonalpark_geojson <- st_read(
"./data/nasjonalparker.geojson",
quiet = TRUE
) |>
st_transform(4326) |>
mutate(kode = str_glue("VV-{kode}"))
st_write(
df_nasjonalpark_geojson,
dsn = "./data/nasjonalparker_4326.geojson",
delete_dsn = TRUE
)
Deleting source `./data/nasjonalparker_4326.geojson' using driver `GeoJSON'
Writing layer `nasjonalparker_4326' to data source
`./data/nasjonalparker_4326.geojson' using driver `GeoJSON'
Writing 32 features with 1 fields and geometry type Multi Polygon.
Just to illustrate, this is what the data looks like when plotted. Pay attention to all the little dots scattered around the map. Also note how the entirety of Svalbard is missing, much of which is covered by national parks. However, for now we’ll focus on cleaning the little dots.
df_nasjonalpark_geojson |>
ggplot() +
geom_sf(data = norway_gpkg, fill = "grey90", color = "transparent") +
geom_sf(fill = "#60e052", color = "darkgreen") +
theme_void()
This is where we turn to the tool I’ve used in the previous post: geojson.io. This free tool lets us easily edit the GeoJSON so we can find and delete the features we don’t want. Simply open the (valid) GeoJSON in the editor window and select the dots and click “delete feature”. This will remove a lot more data than we want and we’ll go from 32 features. (as opposed to the 48 expected) to even fewer, but it’s about the process in this post. It’ll be about the result when you apply these tools in your work. We can save the “cleaned” dataset as nasjonalparker_4326_manually_cleaned.geojson and then load it again. We’ll also load the metadatafile and combine them by ID.
df_nasjonalpark_cleaned <- st_read(
"./data/nasjonalparker_4326_manually_cleaned.geojson",
quiet = TRUE
)
df_nasjonalpark_metadata <- jsonlite::read_json(
"./data/nasjonalpark_metadata.json"
) |>
pluck("barn") |>
transpose() |>
as_tibble() |>
mutate(
across(where(is.list), ~ map_chr(.x, 1)),
name_clean = str_replace_all(
str_remove(url, "/Naturvernområde/Nasjonalpark/"),
"_",
" "
)
)
df_nasjonalpark <- df_nasjonalpark_cleaned |>
full_join(df_nasjonalpark_metadata, by = "kode") |>
mutate(
area = st_area(geometry),
)
Then we can plot the result. We’ll add an option to calculate the centroids so we can label the parks that are left.
df_nasjonalpark_centroids <- df_nasjonalpark |>
st_centroid() |>
mutate(
lon = st_coordinates(geometry)[, 1],
lat = st_coordinates(geometry)[, 2]
)
df_nasjonalpark |>
ggplot() +
geom_sf(data = norway_gpkg, fill = "grey90", color = "transparent") +
geom_sf(fill = "#60e052", color = "darkgreen") +
ggrepel::geom_text_repel(
data = df_nasjonalpark_centroids,
aes(x = lon, y = lat, label = name_clean),
size = 2,
family = "custom",
min.segment.length = 0,
seed = 42
) +
labs(
x = "Longitude",
y = "Latitude",
caption = "NOTE: not all national parks are shown"
) +
theme_void(base_family = "custom")
As you can see, many of the smaller dots are gone, but also the number of green areas which are supposed to depict national parks is too low. But at least now we learned how to clean this type of data.
If you’re curious, here what it would look like when we use the better quality dataset mentioned earlier:
st_layers("./data/nasjonalparker_good_quality.geojson")
Driver: GeoJSON
Available layers:
layer_name geometry_type features fields crs_name
1 nasjonalparker_good_quality 55 107 WGS 84
df_nasjonalpark_good <- st_read(
"./data/nasjonalparker_good_quality.geojson",
quiet = TRUE
) |>
janitor::clean_names() |>
mutate(bbox = map(geometry, st_bbox)) |>
filter(
map_lgl(
bbox,
~ .x["ymax"] <= 75
)
)
df_nasjonalpark_good_centroids <- df_nasjonalpark_good |>
st_centroid() |>
mutate(
lon = st_coordinates(geometry)[, 1],
lat = st_coordinates(geometry)[, 2]
)
df_nasjonalpark_good |>
ggplot() +
geom_sf(data = norway_gpkg, fill = "grey90", color = "transparent") +
geom_sf(fill = "#60e052", color = "darkgreen") +
ggrepel::geom_text_repel(
data = df_nasjonalpark_good_centroids,
aes(x = lon, y = lat, label = naturbase_navn),
size = 2,
family = "custom",
min.segment.length = 0,
max.overlaps = Inf,
seed = 42
) +
labs(
x = "Longitude",
y = "Latitude",
) +
theme_void(base_family = "custom")
I hope I showed that working with geospatial data is not as intimidating as it may have seemed from before. Essentially all you need to remember from this post is st_layers() for inspecting the dataset, st_read() to load it (in whatever format it is), and geom_sf() to plot it
Hm, didn’t need to write such a long post after all it seems
. There are a lot of cool things one can do with geospatial data in R. I had quite a lot of fun with this one, and while writing it I actually learned a bit myself too. I’m glad I finally got to deliver what I’d say I’d do in the previous post, but more importantly I hope I inspired you to give plotting geospatial data in R a go. Happy coding!
